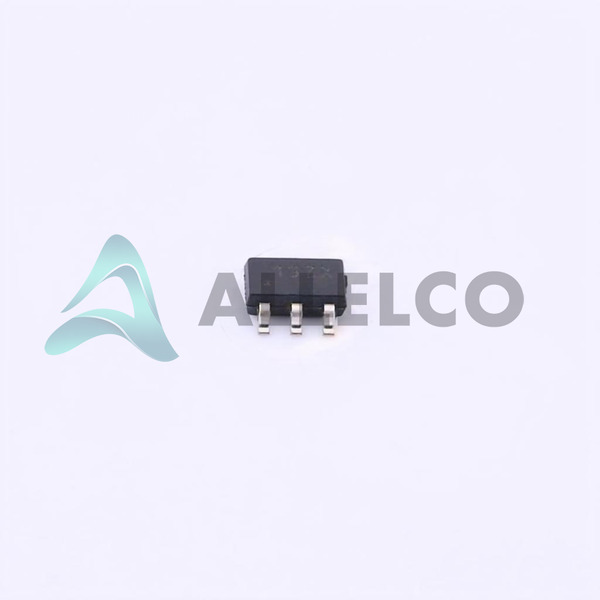

TPL5110QDDCTQ1 - Texas Instruments

Manufacturer Part Number

TPL5110QDDCTQ1

Manufacturer

Texas Instruments

Introduction

The TPL5110QDDCTQ1 is a programmable timer with ultra-low power consumption, designed for power management in various systems.

Product Features and Performance

Ultra-low current consumption of 35 nA

Wide supply voltage range from 1.8V to 5.5V

High temperature operating range from -40°C to 125°C

Programmable time intervals for power cycling

Small SOT-23-6 package for space-saving applications

Automotive grade reliability and performance

Product Advantages

Greatly reduces system power consumption

Flexible timing allows customization for different applications

Enables long battery life in portable devices

Robust design suitable for harsh automotive environments

Key Technical Parameters

Supply Voltage: 1.8V ~ 5.5V

Current - Supply: 35 nA

Operating Temperature: -40°C ~ 125°C

Package: SOT-23-6 Thin, TSOT-23-6

Mounting Type: Surface Mount

Automotive Grade with AEC-Q100 qualification

Quality and Safety Features

AEC-Q100 qualified for automotive applications

Built-in error detection for reliable operation

Compatibility

Compatible with various microcontrollers and other timing components

Can be integrated into systems with 1.8V to 5.5V power supply levels

Application Areas

Automotive electronics

Battery-powered devices

Energy-harvesting applications

IoT and wearable devices

Power management systems

Product Lifecycle

Active status indicating ongoing manufacturing and support

Not indicated as nearing discontinuation

Replacements or upgrades may be available as newer technologies emerge

Several Key Reasons to Choose This Product

Ultra-low power enables extended battery life

High integration reduces the need for external components

Wide operating temperature range suitable for harsh environments

Automotive grade quality ensures reliability and longevity in vehicle applications

Flexible programming options cater to a wide range of power management needs

Supplied in tape and reel for efficient assembly processes in large-scale manufacturing
