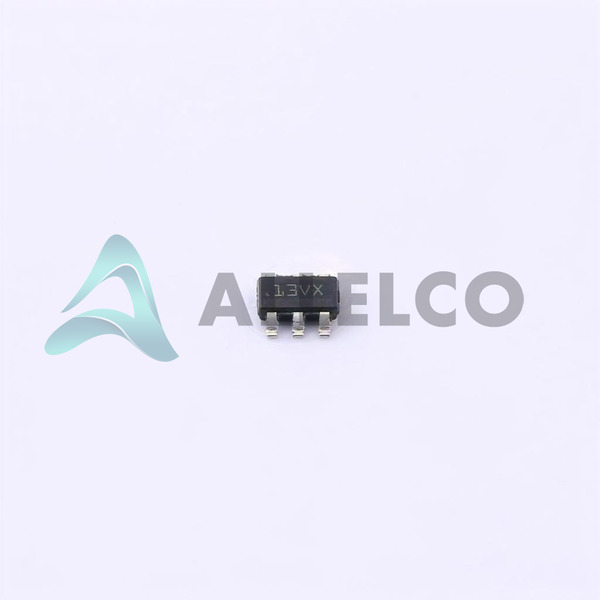

TPL5010QDDCTQ1 - Texas Instruments

Manufacturer Part Number

TPL5010QDDCTQ1

Manufacturer

Texas Instruments

Introduction

The TPL5010QDDCTQ1 is a programmable timer designed for low-power applications, compatible with automotive requirements.

Product Features and Performance

Programmable timer with a wide range of timing intervals

Designed for high-reliability applications

Low current consumption of 35 nA

Supports a wide voltage range from 1.8V to 5V

Product Advantages

Extremely low power usage enhances battery life

Automotive-grade quality ensures robust performance under harsh conditions

Small package size (SOT-23-6) suitable for compact PCB layouts

Key Technical Parameters

Supply Voltage: 1.8V ~ 5V

Current Supply: 35 nA

Operating Temperature: -40°C ~ 125°C

Package: SOT-23-6 Thin, TSOT-23-6

Quality and Safety Features

AEC-Q100 qualified for automotive applications

Robust operating temperature range ensuring reliability in extreme conditions

Compatibility

Surface mount technology makes it compatible with modern PCB designs

Application Areas

Automotive systems

Power management circuits

Timing sensitive applications where power consumption is critical

Product Lifecycle

Currently active and not near discontinuation

No immediate plans for replacements or upgrades indicated

Several Key Reasons to Choose This Product

Ultra-low power consumption significantly extends system battery life

High reliability and qualification for automotive applications ensure suitability for critical systems

Flexible voltage supply compatibility simplifies integration into existing designs

Compact size aids in designing space-constrained applications
