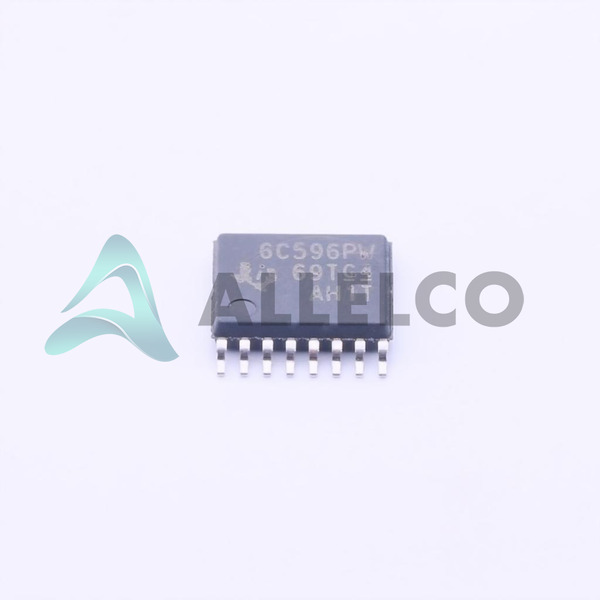

TPIC6C596PWRG4 - Texas Instruments

Manufacturer Part Number

TPIC6C596PWRG4

Manufacturer

Texas Instruments

Introduction

The TPIC6C596PWRG4 is a power logic 8-bit shift register from Texas Instruments.

Product Features and Performance

8-bit serial-in, parallel-out shift register

Open-drain outputs

Output clamp voltage: 50V

Output current: 100 mA per channel

Edge-triggered data input

Output enable function

Product Advantages

Integrated suppression diode for inductive loads

High voltage output ideal for driving LEDs or relays

Power-up clear functionality

Key Technical Parameters

Logic type: Shift Register

Output type: Open Drain

Number of elements: 1

Bits per element: 8

Function: Serial to Parallel, Serial

Voltage supply: 4.5V to 5.5V

Operating temperature: -40°C to 125°C

Mounting type: Surface Mount

Package/Case: 16-TSSOP (0.173", 4.40mm width)

Quality and Safety Features

Built-in thermal shutdown protection

Overvoltage protection

Compatibility

Compatible with SPI, MICROWIRE, and QSPI interfaces

Application Areas

LED displays

Relay driving

Motor control circuits

Product Lifecycle

Obsolete - consider newer alternatives for designs

Replacements and upgrades may be available from Texas Instruments

Several Key Reasons to Choose This Product

High-voltage output capability

Robust transient performance

Low power consumption

Ease of interfacing with microcontrollers

Suitable for high-temperature operation
