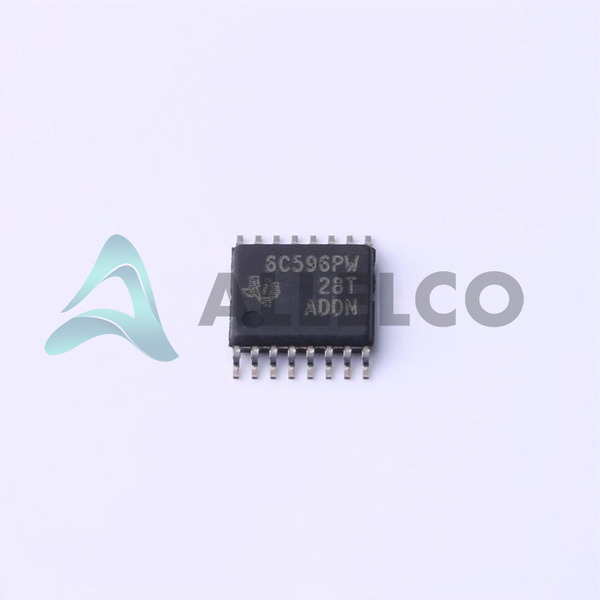

TPIC6C596PWR - Texas Instruments

Manufacturer Part Number

TPIC6C596PWR

Manufacturer

Texas Instruments

Introduction

TPIC6C596PWR is a high-performance logic shift register that efficiently converts serial input to parallel output using open drain technology.

Product Features and Performance

Efficient serialization of input data

Open drain output for improved connectivity

Operates with a supply voltage range of 4.5V to 5.5V

Capable of functioning between -40°C to 125°C

Packaged in a space-saving 16-TSSOP

Product Advantages

High temperature operational range ensures reliability across various environments

Open drain output provides flexibility in connected loads

Streamlines data processing tasks with serial to parallel conversion

Key Technical Parameters

Logic Type: Shift Register

Output Type: Open Drain

Number of Elements: 1

Number of Bits per Element: 8

Voltage Supply: 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Manufactured to rigorous safety and quality standards

Over-temperature protection ensures device longevity under extreme conditions

Compatibility

Compatible with various microcontrollers and digital systems due to standard logical level inputs

Application Areas

Automotive systems

Industrial automation

Consumer electronics

Data management systems

Product Lifecycle

Marked as Last Time Buy; consider planning for future replacements or upgrades

Several Key Reasons to Choose This Product

High operational temperature range supports use in extreme environments

Compact TSSOP packaging allows for small form factor designs

Open drain outputs facilitate the use of various peripherals

Reliable data handling and processing with serial to parallel conversion features

Supported by Texas Instruments' reputable engineering and manufacturing standards
