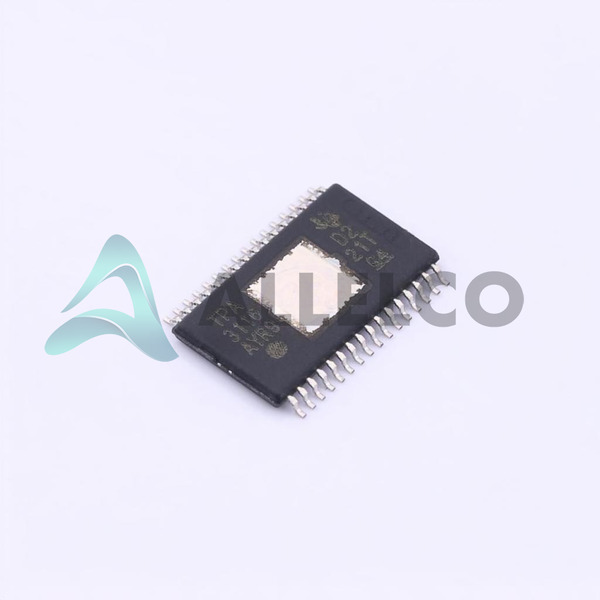

TPA3116D2DAD - Texas Instruments

Manufacturer Part Number

TPA3116D2DAD

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) for audio amplification

Part of the SpeakerGuard series

Product Features and Performance

2-channel (stereo) Class D audio amplifier

Capable of 50W output power per channel at 4Ohm load

Wide supply voltage range of 4.5V to 26V

Differential inputs

Integrated mute, short-circuit, and thermal protection features

Shutdown function

Product Advantages

High-efficiency Class D design

Excellent thermal management

Robust protection features

Wide compatibility with various power supply voltages

Key Technical Parameters

Package: 32-HTSSOP

Operating temperature range: -40°C to 85°C

Mounting type: Surface mount

Quality and Safety Features

RoHS3 compliant

Integrated protection against short-circuits, overheating, and overcurrent

Compatibility

Suitable for a wide range of audio applications, including speakers, home theater systems, and portable audio devices

Application Areas

Amplification for audio systems

Integration in consumer electronics and audio equipment

Product Lifecycle

Currently in active production

Replacement or upgraded models may be available in the future, depending on market needs and technology advancements

Key Reasons to Choose This Product

High-efficiency Class D design for improved power management

Wide supply voltage range for flexibility in power source selection

Robust protection features for reliable and safe operation

Compact surface mount package for space-constrained designs

Proven performance and reliability from a trusted manufacturer (Texas Instruments)
