HomeProductsIntegrated Circuits (ICs)Linear - Amplifiers - AudioTPA3113D2PWP

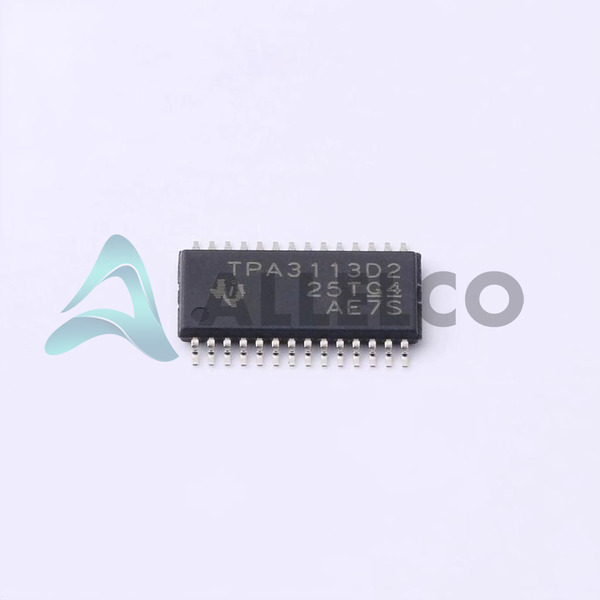

TPA3113D2PWP Image
Image may be representation.
See specifications for product details.

TPA3113D2PWP - Texas Instruments

Manufacturer Part Number
TPA3113D2PWP
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPA3113D2PWP
ECAD Model
Parts Description
IC AMP CLASS D STER 6W 28HTSSOP
Detailed Description
Package
28-PowerTSSOP (0.173", 4.40mm Width)
Data sheet
TPA3113D2.pdf
RoHs Status
ROHS3 Compliant
In stock: 46796

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPA3113D2PWP Tech Specifications
Texas Instruments - TPA3113D2PWP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPA3113D2PWP

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 8V ~ 26V
Type Class D
Supplier Device Package 28-HTSSOP
Series SpeakerGuard™
Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
Package Tube
Product Attribute Attribute Value
Output Type 2-Channel (Stereo)
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Max Output Power x Channels @ Load 6W x 2 @ 8Ohm
Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Base Product Number TPA3113

Parts Introduction

Manufacturer Part Number

TPA3113D2PWP

Manufacturer

Texas Instruments

Introduction

The TPA3113D2PWP is a high-performance, 2-channel, Class-D audio amplifier IC from Texas Instruments.

Product Features and Performance

Highly efficient Class-D amplification

Supports up to 6W x 2 output power at 8Ω load

Wide 8V to 26V supply voltage range

Differential input with DC blocking capacitors

Short-circuit and thermal protection

Shutdown mode for power saving

SpeakerGuard technology for pop/click reduction

Product Advantages

Compact 28-pin HTSSOP package

High-efficiency Class-D topology

Robust protection features

Flexible supply voltage range

Stereo operation in a single chip

Key Technical Parameters

Output Power: 6W x 2 @ 8Ω

Supply Voltage: 8V to 26V

Quiescent Current: 5mA

Operating Temperature: -40°C to +85°C

Quality and Safety Features

RoHS3 compliant

Short-circuit and thermal protection

Shutdown mode for power saving

Compatibility

Compatible with a wide range of audio applications that require a compact, efficient, and feature-rich Class-D amplifier solution.

Application Areas

Portable audio devices

Home audio systems

Automotive audio

Professional audio equipment

Product Lifecycle

The TPA3113D2PWP is an active product from Texas Instruments. Replacement or upgrade options may be available as technology advances.

Key Reasons to Choose This Product

High-efficiency Class-D amplification

Robust protection features for reliable operation

Flexible supply voltage range for design versatility

Compact 28-pin HTSSOP package for space-constrained applications

Stereo operation in a single chip for simplified design

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPA3113D2PWP

Product Attribute TPA3113D2PWP TPA3116D2DAD TPA3116D2DADR TPA3113D2PWPR
Part Number TPA3113D2PWP TPA3116D2DAD TPA3116D2DADR TPA3113D2PWPR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case 28-PowerTSSOP (0.173", 4.40mm Width) 32-PowerTSSOP (0.240", 6.10mm Width) 32-PowerTSSOP (0.240", 6.10mm Width) 28-PowerTSSOP (0.173", 4.40mm Width)
Max Output Power x Channels @ Load 6W x 2 @ 8Ohm 50W x 2 @ 4Ohm 50W x 2 @ 4Ohm 6W x 2 @ 8Ohm
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Series SpeakerGuard™ SpeakerGuard™ SpeakerGuard™ SpeakerGuard™
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Supply 8V ~ 26V 4.5V ~ 26V 4.5V ~ 26V 8V ~ 26V
Package Tube Tube Tape & Reel (TR) Tape & Reel (TR)
Output Type 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo)
Supplier Device Package 28-HTSSOP 32-HTSSOP 32-HTSSOP 28-HTSSOP
Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Base Product Number TPA3113 TPA3116 TPA3116 TPA3113
Type Class D Class D Class D Class D

TPA3113D2PWP Datasheet PDF

Download TPA3113D2PWP pdf datasheets and Texas Instruments documentation for TPA3113D2PWP - Texas Instruments.

PCN Design/Specification
Design 22/Feb/2022.pdf
PCN Assembly/Origin
Mult Dev 12/Apr/2023.pdf
HTML Datasheet
TPA3113D2.pdf
