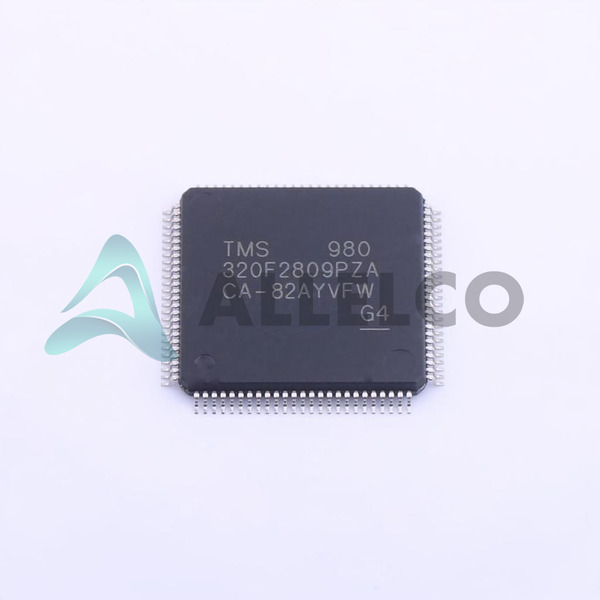

TMS320F2809PZA Image
TMS320F2809PZA Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TMS320F2809PZA - Texas Instruments

Manufacturer Part Number
TMS320F2809PZA
Manufacturer
Texas Instruments
Allelco Part Number
32D-TMS320F2809PZA
ECAD Model
Parts Description
IC MCU 32BIT 256KB FLASH 100LQFP
Detailed Description
Package
100-LQFP
Data sheet
TMS320F2809PZS Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 2185

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TMS320F2809PZA Tech Specifications
Texas Instruments - TMS320F2809PZA technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMS320F2809PZA

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1.71V ~ 1.89V
Supplier Device Package 100-LQFP (14x14)
Speed 100MHz
Series Automotive, AEC-Q100, C2000™ C28x Fixed-Point
RAM Size 18K x 16
Program Memory Type FLASH
Program Memory Size 256KB (128K x 16)
Peripherals POR, PWM, WDT
Package / Case 100-LQFP
Package Tray
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 35
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 16x12b
Core Size 32-Bit Single-Core
Core Processor C28x
Connectivity CANbus, I²C, SCI, SPI, UART/USART
Base Product Number TMS320

Parts Introduction

Manufacturer Part Number

TMS320F2809PZA

Manufacturer

Texas Instruments

Introduction

Highly integrated 32-bit fixed-point microcontroller with advanced analog and digital peripherals for automotive and industrial applications

Product Features and Performance

32-bit C28x CPU core running at 100MHz

256KB flash memory and 18KB RAM

16-channel 12-bit ADC

PWM, POR, WDT, CAN, SPI, UART/USART, and other advanced peripherals

Wide operating temperature range of -40°C to 85°C

AEC-Q100 qualified for automotive applications

Product Advantages

High performance 32-bit processing

Extensive analog and digital peripheral set

Automotive-grade reliability and quality

Flexible connectivity options

Low power consumption

Key Technical Parameters

100-LQFP (14x14) package

71V to 1.89V supply voltage

Internal oscillator

35 I/O pins

Quality and Safety Features

RoHS 3 compliant

AEC-Q100 qualified

Automotive-grade reliability

Compatibility

Suitable for a wide range of automotive and industrial applications requiring high-performance, integrated microcontrollers

Application Areas

Automotive electronics (engine control, body electronics, chassis control)

Industrial automation (motor control, power conversion, sensor interfaces)

General-purpose embedded control systems

Product Lifecycle

The TMS320F2809PZA is a current product in the C2000 microcontroller family. Texas Instruments continues to provide support and updates for this device.

Key Reasons to Choose This Product

Powerful 32-bit C28x core for high-performance processing

Extensive analog and digital peripheral set for versatile system design

Automotive-grade reliability and quality for mission-critical applications

Wide operating temperature range for harsh environments

Flexible connectivity options for integration into diverse systems

Low power consumption for energy-efficient designs

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TMS320F2809PZA

Product Attribute TMS320F2809PZA TMS320F2809PZQ TMS320F28075PZPT TMS320F2811PBKA
Part Number TMS320F2809PZA TMS320F2809PZQ TMS320F28075PZPT TMS320F2811PBKA
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Data Converters A/D 16x12b A/D 16x12b A/D 14x12b; D/A 3x12b A/D 16x12b
Supplier Device Package 100-LQFP (14x14) 100-LQFP (14x14) 100-HTQFP (14x14) 128-LQFP (14x14)
Series Automotive, AEC-Q100, C2000™ C28x Fixed-Point Automotive, AEC-Q100, C2000™ C28x Fixed-Point C2000™ C28x Piccolo™, Functional Safety (FuSa) Automotive, AEC-Q100, C2000™ C28x Fixed-Point
Package / Case 100-LQFP 100-LQFP 100-TQFP Exposed Pad 128-LQFP
Package Tray Tray Tray Tray
Program Memory Type FLASH FLASH FLASH FLASH
Peripherals POR, PWM, WDT POR, PWM, WDT DMA, POR, PWM, WDT DMA, POR, PWM, WDT
Core Processor C28x C28x C28x C28x
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 125°C (TA) -40°C ~ 105°C (TA) -40°C ~ 85°C (TA)
EEPROM Size - - - -
Number of I/O 35 35 41 56
Program Memory Size 256KB (128K x 16) 256KB (128K x 16) 512KB (256K x 16) 256KB (128K x 16)
Core Size 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Base Product Number TMS320 TMS320 TMS320 TMS320
Voltage - Supply (Vcc/Vdd) 1.71V ~ 1.89V 1.71V ~ 1.89V 1.14V ~ 3.47V 1.81V ~ 2V
Oscillator Type Internal Internal External Internal
Connectivity CANbus, I²C, SCI, SPI, UART/USART CANbus, I²C, SCI, SPI, UART/USART CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART, USB CANbus, McBSP, SCI, SPI, UART/USART
RAM Size 18K x 16 18K x 16 50K x 16 18K x 16
Speed 100MHz 100MHz 120MHz 150MHz

TMS320F2809PZA Datasheet PDF

Download TMS320F2809PZA pdf datasheets and Texas Instruments documentation for TMS320F2809PZA - Texas Instruments.

Datasheets
TMS320F2809PZS Datasheet.pdf
PCN Packaging
14x14x1.4 LQFP Tray Update 26/Sep/2013.pdf New Tray 08/Jun/2020.pdf
PCN Design/Specification
TMS320x 26/Aug/2019.pdf
