TMS320F2811PBKS - Texas Instruments

Manufacturer Part Number

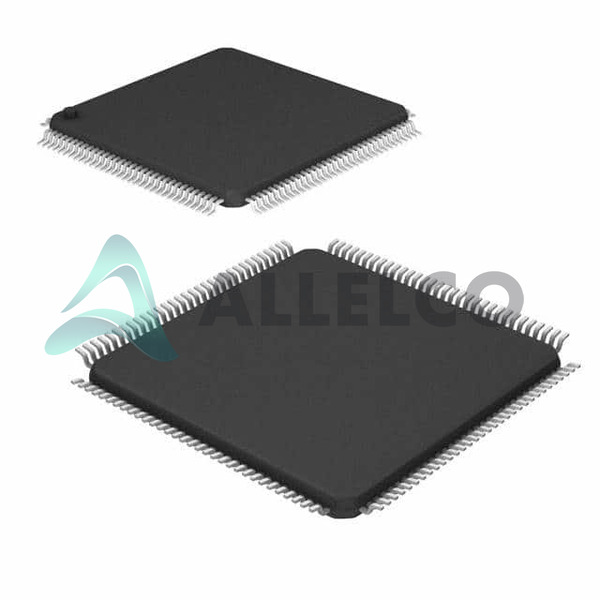

TMS320F2811PBKS

Manufacturer

Texas Instruments

Introduction

The TMS320F2811PBKS is part of the C2000™ C28x Fixed-Point series, designed for advanced, high-performance microcontrol applications in automotive environments.

Product Features and Performance

Core processor: C28x

Core size: 32-Bit Single-Core

Speed: 150MHz

Connectivity: CANbus, McBSP, SCI, SPI, UART/USART

Peripherals: DMA, POR, PWM, WDT

Program memory size: 256KB (128K x 16) FLASH

RAM size: 18K x 16

Data converters: A/D 16x12b

Oscillator type: Internal

Operating temperature range: -40°C ~ 125°C

Product Advantages

Robust error handling capabilities

High-speed performance

Extensive connectivity options

Reliable in harsh conditions

Enhanced peripheral set for diversified control

Key Technical Parameters

Speed: 150MHz

Program memory: 256KB FLASH

RAM: 18K x 16

Voltage supply (Vcc/Vdd): 1.81V ~ 2V

Data converters: A/D 16x12b

Number of I/O: 56

Operating temperature: -40°C ~ 125°C

Quality and Safety Features

Automotive grade qualifications (AEC-Q100)

Integrated watchdog timer

Protection against under-voltage (POR)

Compatibility

Compatible with various industrial and automotive communication protocols

Application Areas

Automotive systems

Industrial control

Power management

Advanced motor control applications

Product Lifecycle

Currently marked as active

Not near discontinuation

Availability of replacements or upgrades as technology progresses

Several Key Reasons to Choose This Product

Exceptional processing speed and memory capacity

Supports a wide range of communication protocols for versatile connectivity

Designed specifically for demanding automotive and industrial applications

Operates effectively in extreme temperature conditions

Complies with stringent automotive industry standards
