Manufacturer Part Number
TMP275AID
Manufacturer
Texas Instruments
Introduction
The TMP275AID is a digital temperature sensor with an I2C (SMBus compatible) interface and programmable resolution.
Product Features and Performance
Operating voltage range: 2.7V to 5.5V
Wide temperature measurement range: -55°C to +127°C
Excellent temperature accuracy: ±0.5°C (max) from -20°C to +100°C
High resolution: 11-bit (0.0625°C/LSB)
One-shot, programmable resolution, shutdown, and standby modes
Local temperature sensing
Product Advantages
Wide operating temperature range
High accuracy over the full temperature range
Programmable resolution for optimizing power consumption
Low power consumption in shutdown and standby modes

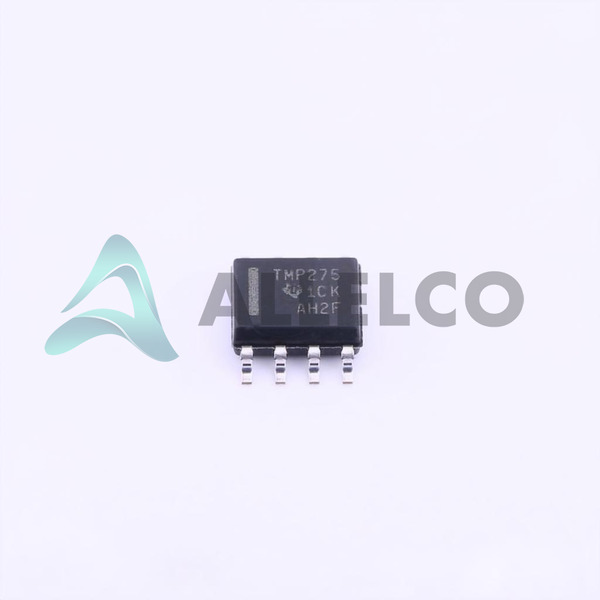

Small 8-SOIC package
Key Technical Parameters
Voltage supply: 2.7V to 5.5V
Temperature measurement range: -55°C to +127°C
Temperature accuracy: ±0.5°C (max) from -20°C to +100°C
Resolution: 11-bit (0.0625°C/LSB)
Quality and Safety Features
RoHS3 compliant
ESD protection
Compatibility
Compatible with SMBus interface
Application Areas
Industrial and consumer electronics
HVAC systems
Appliances
Medical equipment
Product Lifecycle
The TMP275AID is an active product and is not nearing discontinuation.
Replacement or upgrade options may be available from Texas Instruments.
Key Reasons to Choose This Product
Wide temperature measurement range
Excellent temperature accuracy
Programmable resolution for power optimization
Low power consumption in shutdown and standby modes
Small footprint 8-SOIC package
