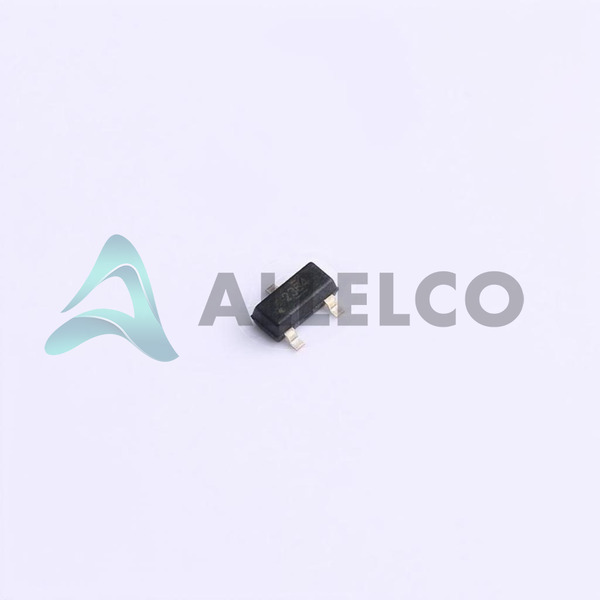

TMP236A4DBZR - Texas Instruments

Manufacturer Part Number

TMP236A4DBZR

Manufacturer

Texas Instruments

Introduction

The TMP236A4DBZR is a high-accuracy, analog temperature sensor with a ratiometric voltage output.

Product Features and Performance

Wide operating temperature range of -50°C to 150°C

High accuracy of ±4°C over the temperature range of -10°C to 125°C

5mV/°C sensitivity

Surface mount, SOT-23-3 package

Product Advantages

High accuracy over a wide temperature range

Small, space-saving surface mount package

Ratiometric voltage output for easy integration

Key Technical Parameters

Supply voltage: 3.1V to 5.5V

Operating temperature range: -50°C to 150°C

Test temperature range: -10°C to 125°C

Resolution: 19.5mV/°C

Accuracy: ±4°C

Sensor type: Analog, local

Sensing temperature range: -10°C to 125°C

Quality and Safety Features

RoHS3 compliant

Tape and reel packaging

Compatibility

Compatible with various electronic systems and circuits that require temperature sensing

Application Areas

Ideal for temperature monitoring and control in a wide range of applications, such as consumer electronics, industrial equipment, and automotive systems

Product Lifecycle

The TMP236A4DBZR is an active product and is not nearing discontinuation. Replacement and upgrade options are available from Texas Instruments.

Reasons to Choose This Product

High accuracy over a wide temperature range

Small, space-saving surface mount package

Ratiometric voltage output for easy integration

RoHS3 compliance for environmental responsibility

Availability of replacement and upgrade options from the manufacturer
