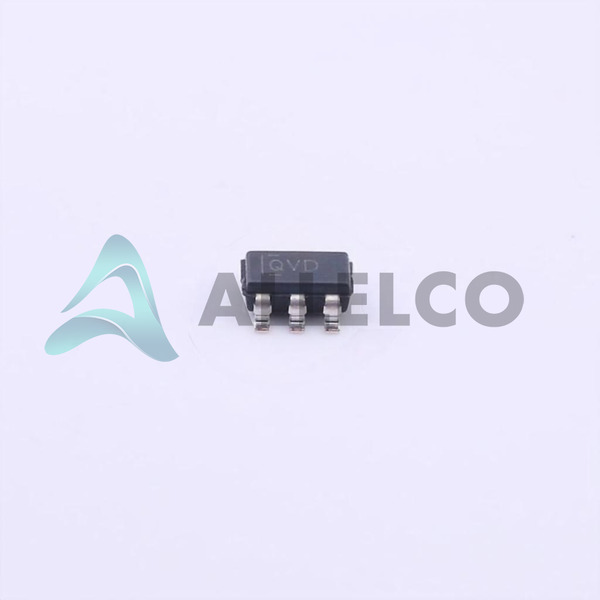

TLV70233DBVR - Texas Instruments

Manufacturer Part Number

TLV70233DBVR

Manufacturer

Texas Instruments

Introduction

Low Dropout Regulator for Power Management Applications

Product Features and Performance

Low Dropout Voltage: 0.38V @ 300mA

Fixed Output Voltage: 3.3V

Maximum Input Voltage: 5.5V

Low Quiescent Current: 55 µA

High PSRR: 68dB (1kHz)

Output Current Capacity: 300mA

Product Advantages

High Efficiency due to Low Dropout

Stable with Low ESR Ceramic Output Capacitors

Low Standby Current Beneficial for Battery-Powered Devices

Key Technical Parameters

Output Configuration: Positive Fixed

Number of Regulators: 1

Voltage Dropout (Max): 0.38V @ 300mA

Current - Supply (Max): 370 µA

PSRR: 68dB (1kHz)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Under Voltage Lockout (UVLO)

Compatibility

Compatible with a Variety of Capacitor Types

Surface Mount Package: SC-74A, SOT-753

Application Areas

Consumer Electronics

Portable Devices

Telecommunication Systems

Product Lifecycle

Status: Active

Not Nearing Discontinuation

Replacements and Upgrades Availability

Several Key Reasons to Choose This Product

Highly Reliable LDO for Sensitive Electronics

Excellent Thermal Performance for Wide Temperature Range

Small Form Factor Suitable for Compact Devices

Ease of Integration due to Fixed Output Configuration

Robust Protection Features Enhance System Safety

Ideal Choice for Low Voltage Applications with Space Constraints
