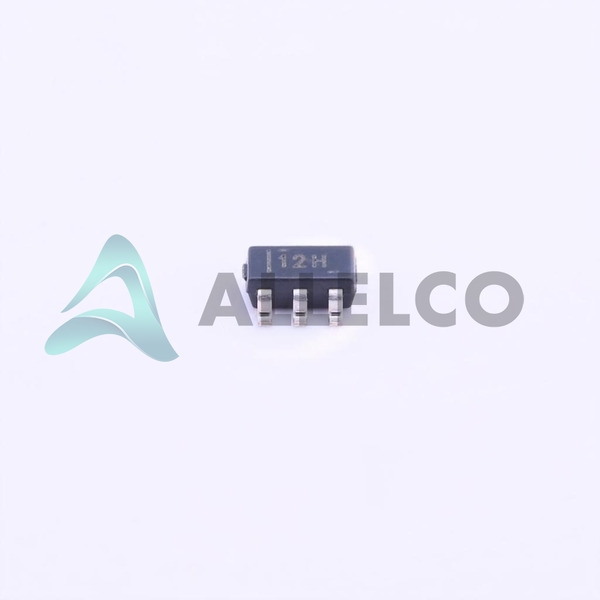

TLV314IDBVR - Texas Instruments

Manufacturer Part Number

TLV314IDBVR

Manufacturer

Texas Instruments

Introduction

The TLV314IDBVR is a single operational amplifier (op-amp) integrated circuit (IC) from Texas Instruments. It is part of the TLV314 series of op-amps.

Product Features and Performance

Rail-to-rail output

Low input bias current of 1 pA

High gain bandwidth of 3 MHz

Low input offset voltage of 750 μV

Wide supply voltage range from 1.8V to 5.5V

Low power consumption with a supply current of 150 μA

Product Advantages

Excellent input offset voltage and bias current performance

Wide operating temperature range from -40°C to 125°C

Compact SOT-23-5 surface mount package

Suitable for low-power, single-supply applications

Key Technical Parameters

Voltage Supply Span (Min): 1.8V

Voltage Supply Span (Max): 5.5V

Current Supply: 150 μA

Slew Rate: 1.5V/μs

Voltage Input Offset: 750 μV

Amplifier Type: CMOS

Current Input Bias: 1 pA

Gain Bandwidth Product: 3 MHz

Quality and Safety Features

RoHS3 compliant

Suitable for safety-critical applications

Compatibility

The TLV314IDBVR is compatible with standard op-amp footprints and can be used as a replacement for other single op-amp ICs.

Application Areas

Suitable for a wide range of low-power, single-supply applications such as sensor signal conditioning, portable devices, and battery-powered equipment.

Product Lifecycle

The TLV314IDBVR is an active product and is not nearing discontinuation.

Replacement and upgrade options are available within the TLV314 series and other Texas Instruments op-amp product lines.

Key Reasons to Choose This Product

Excellent input offset voltage and bias current performance for high-precision applications

Wide operating temperature range and low power consumption make it suitable for portable and battery-powered devices

Compact SOT-23-5 surface mount package for space-constrained designs

Part of a well-established and reliable op-amp product line from a leading semiconductor manufacturer, Texas Instruments.
