TLV3012AIDBVT - Texas Instruments

Manufacturer Part Number

TLV3012AIDBVT

Manufacturer

Texas Instruments

Introduction

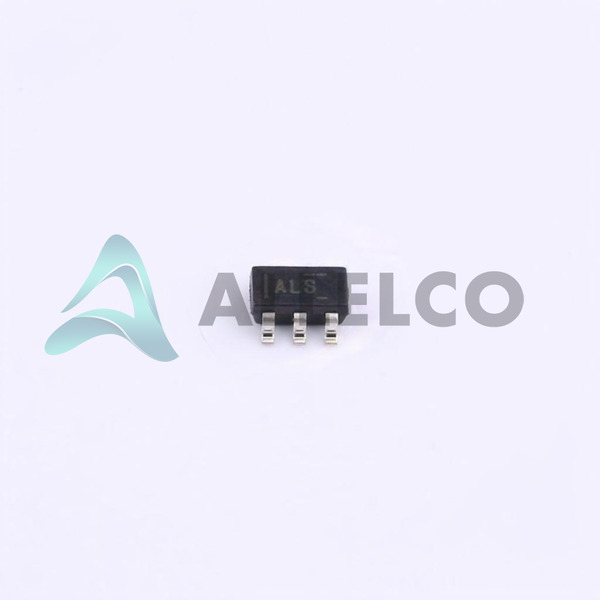

The TLV3012AIDBVT is a single linear comparator with an integrated voltage reference, encapsulated in a SOT-23-6 package, ideal for voltage monitoring and conditional control across various applications.

Product Features and Performance

Integrated functionality of voltage comparator and voltage reference

Compact SOT-23-6 package

Designed for low voltage operations, supports 1.8V to 5.5V

Input Offset Voltage: Max 12mV at 5.5V

Input Bias Current: Max 10pA at 5.5V

High CMRR of 74dB and PSRR of 80dB

Maximum propagation delay of 13.5µs

Product Advantages

Ultra-low current consumption at 5µA max, ideal for power-sensitive applications

Supports both single and dual supply operation

Robust operating temperature range from -40°C to 85°C

Key Technical Parameters

Number of Elements: 1

Output Type: Push-Pull

Voltage Supply Range: 1.8V ~ 5.5V

Maximum Voltage Input Offset: 12mV at 5.5V

Maximum Current Input Bias: 10pA at 5.5V

Quiescent Current: Max 5µA

CMRR: 74dB

PSRR: 80dB

Maximum Propagation Delay: 13.5µs

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Consistent performance guaranteed under specified temperature and voltage conditions

Compatibility

Suitable for various electrical and electronic circuit requirements, easily integrated due to surface mount package

Application Areas

Portable/Battery operated applications

Voltage monitoring systems

Conditional switching circuits

Electronics requiring precision voltage comparisons

Product Lifecycle

The TLV3012AIDBVT is currently active with Texas Instruments ensuring ongoing production and support. Not nearing discontinuation, and replacements or upgrades are readily available if needed.

Several Key Reasons to Choose This Product

Extremely low power operation reduces overall system power consumption

High accuracy and precision with low input offset and bias currents

Broad compatibility with various power supplies ranging from 1.8V to 5.5V

Suitable for rugged applications given the wide operating temperature range

Reliable manufacturer support and product lifecycle assurance from Texas Instruments
