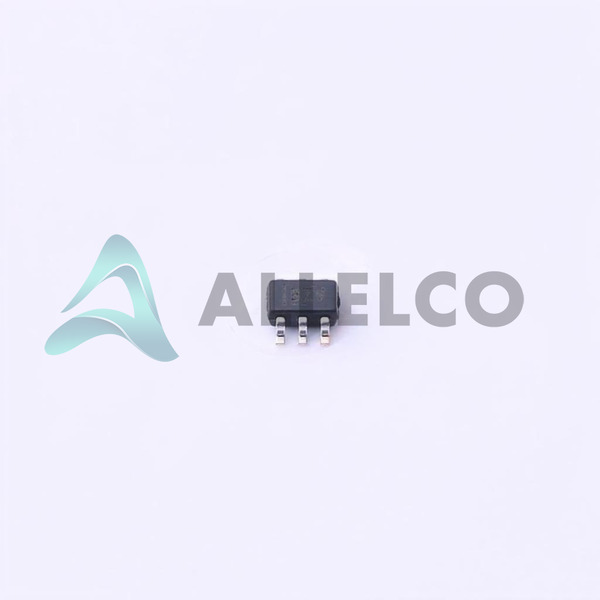

Manufacturer Part Number
SN74LVC2G17MDCKREP
Manufacturer
Texas Instruments
Introduction
Dual Schmitt-Trigger Buffer
Product Features and Performance
Two independent buffers
Schmitt trigger input for noise filtering
Push-Pull output type
Supports 5V tolerant inputs
Low power consumption
Wide supply voltage range (1.65V to 5.5V)
Product Advantages
Enhanced signal integrity
Flexible voltage compatibility
High drive strength
Wide operating temperature range
Key Technical Parameters
Logic Type: Buffer, Non-Inverting
Number of Elements: 2
Number of Bits per Element: 1
Current Output High, Low: 32mA
Voltage Supply Range: 1.65V ~ 5.5V
Operating Temperature: -55°C ~ 125°C
Quality and Safety Features
Robust construction for reliability
Extensive testing for quality assurance
Compatibility
Interface with 5V logic levels
Compatible with down-voltage systems
Application Areas
Signal conditioning
Level shifting
Glitch suppression
Product Lifecycle
Active product
Not nearing discontinuation
Future replacements available
Reasons to Choose This Product
Reliable performance from a reputable manufacturer
Versatility across multiple logic levels
Enhanced noise immunity
Supports wide range of operating temperatures
Suitable for harsh environments
Strong output drive capability
Ideal for compact PCB layouts due to small package size
