Manufacturer Part Number

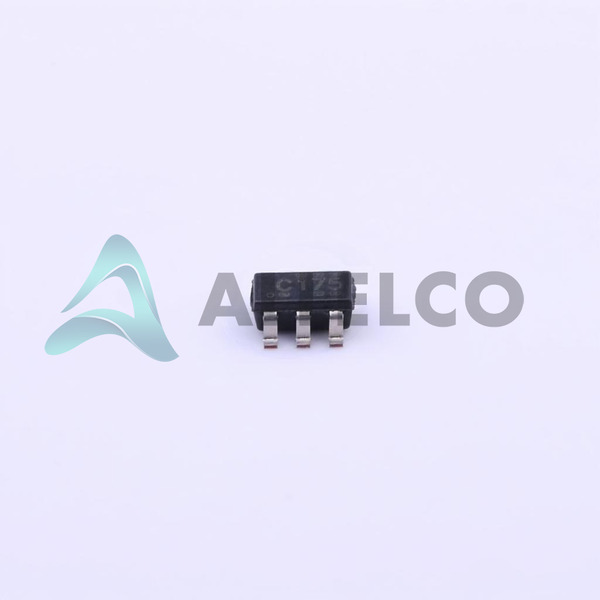

SN74LVC2G17DBVR
Manufacturer
Texas Instruments
Introduction
Dual Schmitt-trigger buffer designed for low-voltage operation.
Product Features and Performance
Logic Type: Buffer, Non-Inverting
Number of Elements: 2
Number of Bits per Element: 1
Schmitt Trigger input for noise filtering
Push-Pull output for driving capability
Low power consumption
Supports 5V tolerant inputs
Product Advantages
High ESD protection level
Latch-up performance exceeds 100 mA per JESD 78
Wide supply voltage range allows for use in a variety of logic systems
Key Technical Parameters
Output High, Low Current: 32mA, 32mA
Voltage - Supply: 1.65V ~ 5.5V
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SOT-23-6
Quality and Safety Features
JESD 78 class II certified for latch-up performance
Compatibility
Compatible with 5V I/O system interface
Application Areas
Telecommunications
Computing systems
Consumer electronics
Signal conditioning applications
Product Lifecycle
Status: Active
No declared discontinuation, replacements or upgrades indicated
Several Key Reasons to Choose This Product
Optimized for low-voltage operation, making it suitable for modern low-power devices
Wide operating temperature range catering to various environments
Robust push-pull outputs able to drive connected loads efficiently
Schmitt Trigger input enhances signal integrity by reducing noise
Small and compact SOT-23-6 package suitable for space-constrained applications
High compatibility with multiple voltage systems due to 5V tolerant inputs
Texas Instruments' reputation for quality and reliability in semiconductor manufacture
