SN74LVC2G08YZPR - Texas Instruments

Manufacturer Part Number

SN74LVC2G08YZPR

Manufacturer

Texas Instruments

Introduction

SN74LVC2G08YZPR is part of the 74LVC series designed specifically for implementing logic gates and inverters, optimized for low voltage operation and high-speed output.

Product Features and Performance

Dual 2-input AND gate logic

Support for low voltage and low power operation

High-speed output with maximum propagation delay of 3.8ns at 5V

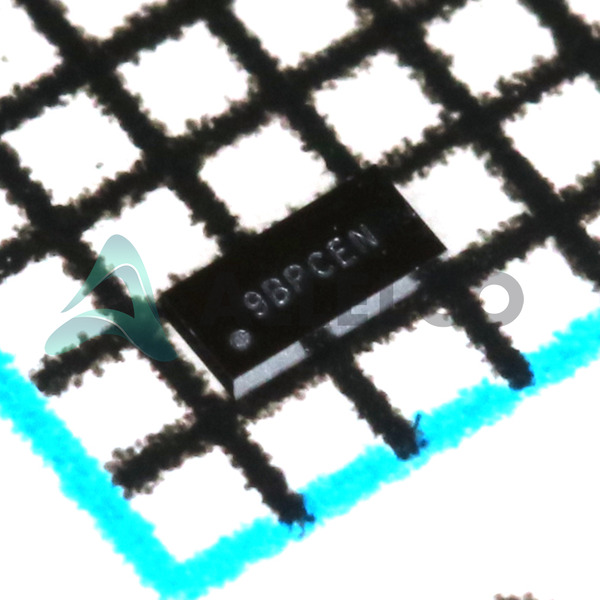

Compact 8-DSBGA surface mount package

Product Advantages

Optimized for low-power consumption with a maximum quiescent current of 10 µA

Capable of handling output currents up to 32mA

Supports a wide range of operating temperatures from -40°C to 85°C

Key Technical Parameters

Voltage Supply Range: 1.65V ~ 5.5V

Current - Output High, Low: 32mA

Max Propagation Delay @ V, Max CL: 3.8ns @ 5V, 50pF

Input Logic Level - Low: 0.7V ~ 0.8V

Input Logic Level - High: 1.7V ~ 2V

Quality and Safety Features

Operates reliably in extreme temperature conditions ranging from -40°C to 85°C

Compatibility

Surface Mount compatible with 8-DSBGA packaging

Compatible with various logic systems due to its wide voltage supply range

Application Areas

Used in computing, consumer electronics, networking equipment, and other digital systems requiring AND logic operations

Product Lifecycle

Currently Active with no indication of discontinuation; regularly available, likely inclusive of replacements or upgrades if needed.

Several Key Reasons to Choose This Product

Supports a broad supply voltage range from 1.65V to 5.5V catering to various digital electronics applications

High-speed output with low propagation delay enhances system performance

Robust operation in diverse environmental conditions

Low power consumption making it ideal for power-sensitive applications

Compact size suitable for space-constrained applications
