Manufacturer Part Number

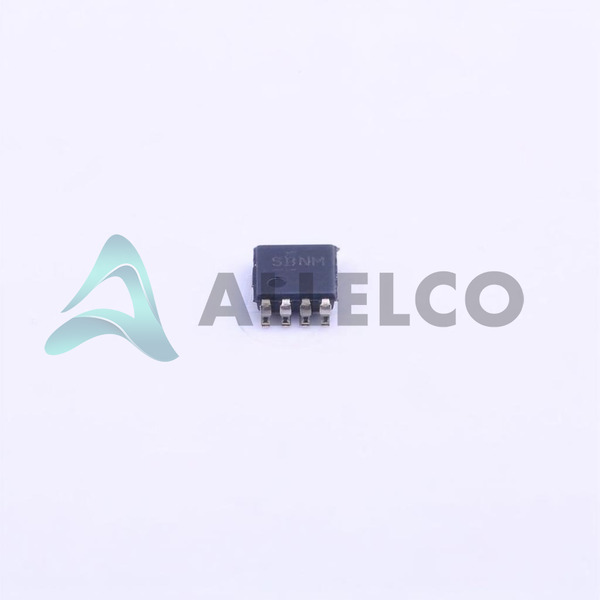

SN74LVC2G08MDCUREP
Manufacturer
texas-instruments
Introduction
The SN74LVC2G08MDCUREP is a dual 2-input AND gate logic circuit from Texas Instruments, part of the 74LVC series designed for optimal performance in high-speed logic systems.
Product Features and Performance
Dual 2-input AND Gate configuration
Low power consumption with a quiescent current maximum of 10 µA
High output current capabilities of 24mA for both high and low outputs
Fast maximum propagation delay of 4.8ns at 5V supply with 50pF load
Wide operating temperature range from -55°C to 125°C
Surface Mount mounting type
Product Advantages
Efficient power handling capabilities
Reliable high-speed operation
Flexible voltage supply range from 1.65V to 5.5V
Minimal signal delay, enhancing overall system performance
Key Technical Parameters
Logic Type: AND Gate
Number of Circuits: 2
Number of Inputs: 2
Voltage Supply: 1.65V to 5.5V
Current Quiescent (Max): 10 µA
Input Logic Level Low: 0.7V to 0.8V
Input Logic Level High: 1.7V to 2V
Quality and Safety Features
Operates within a broad temperature spectrum (-55°C to 125°C) ensuring stability in harsh conditions
Compatibility
Package / Case: 8-VFSOP, compatible with surface mount setups
Application Areas
High-speed computing systems
Communication infrastructure
Signal processing units
Product Lifecycle
Currently Active
Not nearing discontinuation, with replacements and upgrades available within the 74LVC series
Several Key Reasons to Choose This Product
High reliability in extreme temperature conditions
Low power requirement enhancing system efficiency
Fast signal processing capabilities
Compatibility with various surface mount technologies
Continuously supported with newer versions within the Texas Instruments portfolio
