Manufacturer Part Number
SN74LVC2G04DRLR
Manufacturer
Texas Instruments
Introduction

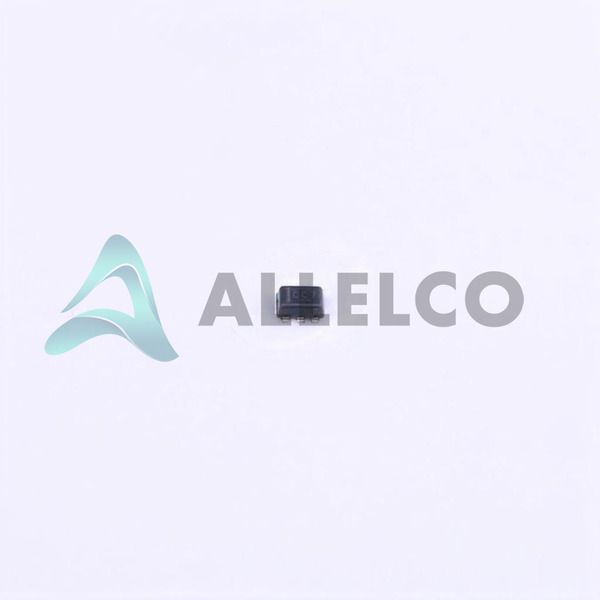

The SN74LVC2G04DRLR is a dual inverter gate integrated circuit from Texas Instruments, designed for logic gate and inverter applications with a compact surface mount package.
Product Features and Performance
Logic Type: Inverter
Number of Circuits: 2
Number of Inputs: 2
Supply Voltage Range: 1.65V to 5.5V
Low Quiescent Current: 10 µA
High Output Current: 32mA each for High and Low outputs
Low Input Logic Level: 0.7V to 0.8V
High Input Logic Level: 1.7V to 2.0V
Fast Propagation Delay: Maximum 3.2ns at 5V, 50pF
Temperature Tolerance: Operational between -40°C and 125°C
Product Advantages
Dual inverter functionality in a small package enhances space efficiency on PCBs.
Wide range of input voltage enhances compatibility with various logic levels in mixed-voltage systems.
High output drive capability can drive larger loads or more inputs per output.
Ultra-low quiescent current aids in power conservation, making it suitable for power-sensitive applications.
Key Technical Parameters
Voltage Supply: 1.65V ~ 5.5V
Current Quiescent (Max): 10 µA
Current Output High, Low: 32mA
Max Propagation Delay @ V, Max CL: 3.2ns @ 5V, 50pF
Quality and Safety Features
Stable operation across a wide operational temperature range.
Compliant with RoHS and major international safety standards for electronic components.
Compatibility
Compatible with a broad range of logic families due to adjustable voltage supply.
Application Areas
Widely used in consumer electronics, computing devices, automation systems, and portable battery-powered devices where power efficiency is crucial.
Product Lifecycle
Status: Active
The product is currently active with no immediate plans for discontinuation, and replacements or upgrades are available.
Several Key Reasons to Choose This Product
High reliability and performance consistency in extreme temperatures.
Versatile power supply compatibility which ensures ease of integration into varied circuit designs.
The ultra-low power consumption makes it ideal for green and power-sensitive applications.
Compact package size facilitates higher circuit density for space-constrained applications.
