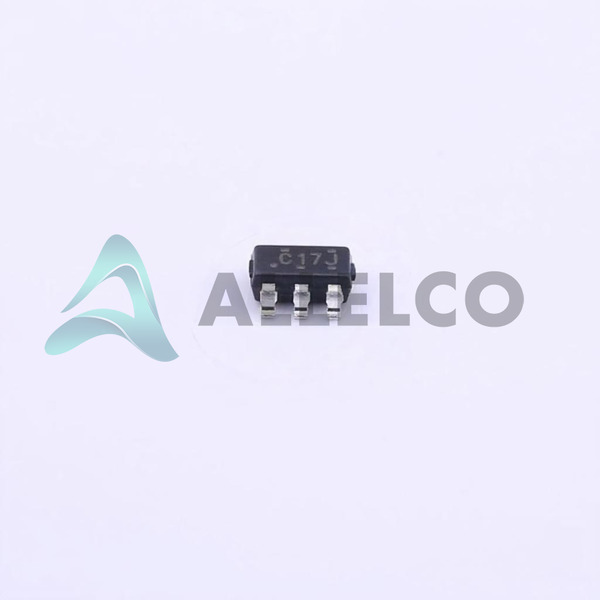

SN74LVC1G17DBVR - Texas Instruments

Manufacturer Part Number

SN74LVC1G17DBVR

Manufacturer

Texas Instruments

Introduction

Single-bit non-inverting buffer

Designed for low-voltage, high-speed CMOS applications

Product Features and Performance

Schmitt Trigger input

High-speed operation

Low power consumption

Wide operating voltage range of 1.65V to 5.5V

High-current output drive capability of 32mA

Supports hot-swap and live insertion/removal

ESD protection exceeds 2000V HBM per JESD22-A114

Product Advantages

Optimized for low-power, high-speed digital systems

Robust ESD protection enhances system reliability

Wide operating voltage range enables use across various applications

Key Technical Parameters

Operating temperature range: -40°C to 125°C

Package: SOT-23-5

Quality and Safety Features

RoHS3 compliant

Reliable surface mount package (SOT-23-5)

Compatibility

Compatible with 5V, 3.3V, and 1.8V logic families

Application Areas

Digital logic buffers

Level shifters

Power management circuits

Telecommunications equipment

Industrial control systems

Product Lifecycle

Currently in production

Replacement or upgrade options available if needed

Key Reasons to Choose This Product

High-performance, low-power operation

Robust ESD protection for enhanced reliability

Wide operating voltage range for versatile applications

Compact and reliable surface mount package

Supported by the extensive Texas Instruments product ecosystem
