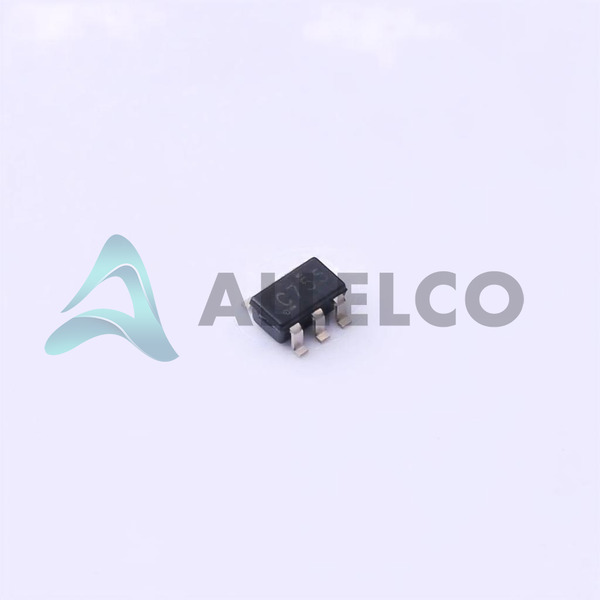

SN74LVC1G175DBVT - Texas Instruments

Manufacturer Part Number

SN74LVC1G175DBVT

Manufacturer

Texas Instruments

Introduction

The SN74LVC1G175DBVT is a single D-type flip-flop with a positive-edge-triggered clock and a reset function. It is part of the 74LVC series of low-voltage, high-performance CMOS logic devices.

Product Features and Performance

Operates at supply voltages from 1.65V to 5.5V

Quiescent current of only 10 μA

Maximum propagation delay of 5 ns at 5V and 50 pF load

Output drive capability of 32 mA (high and low)

1-bit D-type flip-flop with positive edge-triggered clock

Reset function

175 MHz maximum clock frequency

3 pF input capacitance

Product Advantages

Low power consumption

High-speed operation

Versatile voltage range

Compact SOT-23-6 package

Key Technical Parameters

Supply voltage: 1.65V to 5.5V

Quiescent current: 10 μA

Maximum propagation delay: 5 ns

Output drive current: 32 mA (high and low)

Clock frequency: 175 MHz

Input capacitance: 3 pF

Quality and Safety Features

RoHS3 compliant

Tape and reel packaging for surface mount assembly

Compatibility

Compatible with 5V, 3.3V, and 1.8V logic families

Application Areas

General-purpose digital logic

Microcontroller and processor interface circuits

Timing and control applications

Product Lifecycle

Currently in production

No known plans for discontinuation

Several Key Reasons to Choose This Product

Low power consumption for energy-efficient designs

High-speed operation for fast digital circuits

Wide voltage range for versatile application

Compact SOT-23-6 package for space-constrained designs

Reset function for reliable data synchronization

RoHS3 compliance for environmental responsibility
