SN74LVC1G132DBVR - Texas Instruments

Manufacturer Part Number

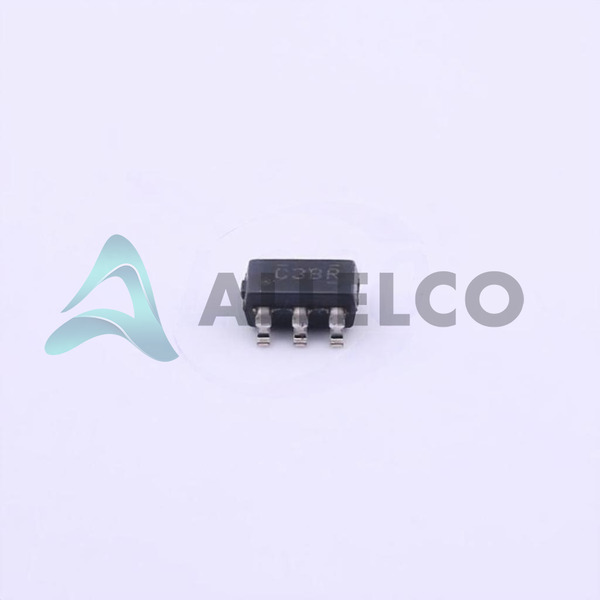

SN74LVC1G132DBVR

Manufacturer

Texas Instruments

Introduction

Single 2-Input NAND Gate with Schmitt-Trigger Inputs

Product Features and Performance

Schmitt Trigger features for noise immunity

Single NAND gate configuration

Low power consumption

Product Advantages

Wide operating voltage range (1.65V to 5.5V)

High output drive capability (32mA)

Low quiescent current (10 µA maximum)

Key Technical Parameters

2 Inputs per circuit

5ns maximum propagation delay at 5V, 50pF

Input Logic Level - Low between 0.39V and 1.87V

Input Logic Level - High between 1.16V and 3.33V

Quality and Safety Features

Extended operating temperature range (-40°C to 125°C)

Meets stringent industrial safety standards

Compatibility

Compatible with down-voltage systems

Surface Mount compatible with SOT-23-5 package

Application Areas

Consumer Electronics

Telecommunication Systems

Data Processing Devices

Signal Processing

Product Lifecycle

Active product status

Not reported as nearing discontinuation

Several Key Reasons to Choose This Product

Flexible voltage range suitable for various applications

Robust Schmitt Trigger action for better signal integrity

Low-power consumption for energy-efficient designs

Suitable for high-speed logic applications due to low propagation delay

Industry-standard SOT-23-5 packaging for simplified board-level design

Long-term industry presence as a reliable part of the 74LVC series
