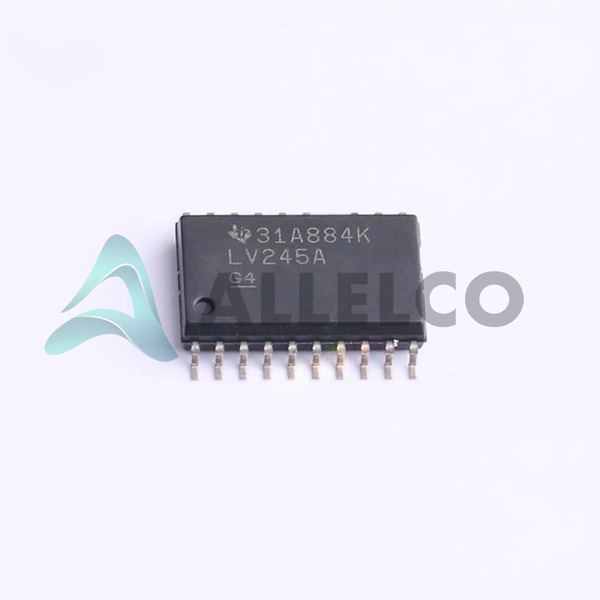

SN74LV245ADWR - Texas Instruments

Manufacturer Part Number

SN74LV245ADWR

Manufacturer

Texas Instruments

Introduction

The SN74LV245ADWR is a logic level transceiver from the 74LV series designed for bidirectional communication.

Product Features and Performance

Bidirectional data communication

Supports 8-bit parallel data transfer

Non-inverting transceiver

3-State outputs enable connection to a bus-oriented system

Operates across a wide voltage range (2V to 5.5V)

Low power consumption

Product Advantages

High drive capability with 16mA on outputs

Compatibility with 5V TTL logic levels

Suitable for bus-oriented systems due to 3-State outputs

Wide operating temperature range (-40°C to 125°C)

Key Technical Parameters

Logic Type: Transceiver, Non-Inverting

Number of Elements: 1

Number of Bits per Element: 8

Current Output High, Low: 16mA, 16mA

Voltage Supply: 2V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Over-voltage tolerant for level shifting

Robust operating temperature range ensuring stability

Compatibility

Interface compatibility with 5V TTL logic

Mounting Type: Surface Mount

Package / Case: 20-SOIC

Application Areas

Data communication systems

Microprocessor or microcontroller interfacing

Signal bridging in mixed-voltage systems

Product Lifecycle

Product status: Active

Not near discontinuation

Availability of replacements or upgrades is maintained by Texas Instruments

Several Key Reasons to Choose This Product

Texas Instruments' reputation for reliable and durable components

Versatility for use in various digital applications

Support for high data transfer speed due to low propagation delay

Suitable for harsh industrial environments with its wide operating temperature range

Available in tape and reel for automated assembly processes
