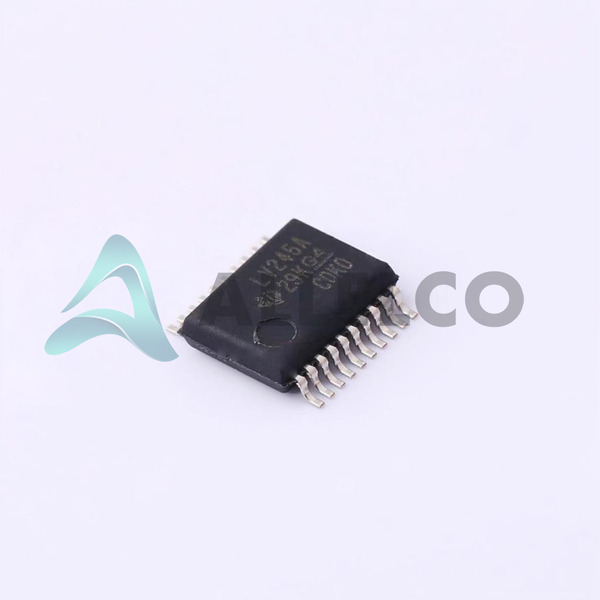

SN74LV245ADBR - Texas Instruments

Manufacturer Part Number

SN74LV245ADBR

Manufacturer

Texas Instruments

Introduction

SN74LV245ADBR is a logic device from Texas Instruments, featuring non-inverting transceiver functions with eight bits per element.

Product Features and Performance

Non-Inverting Transceiver

Octal Bus Interface

Low-Voltage Operation

3-State Outputs

8-Bit Interface

Product Advantages

Supports bidirectional communication

Compatible with 5V systems

Operates from 2V to 5.5V, providing design flexibility

Suitable for overvoltage protection

Key Technical Parameters

Number of Elements: 1

Number of Bits per Element: 8

Current Output High, Low: 16mA

Voltage Supply: 2V to 5.5V

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

Extended temperature range for reliability

Overvoltage tolerant for system protection

Industry-standard quality and safety features

Compatibility

Compatible with multiple supply voltages for use in various logic circuits

Can be interfaced with various microprocessors and controllers

Application Areas

Data Bus Interface

Communication Systems

Control Systems

Embedded Systems

Product Lifecycle

Active Product Status

Not near discontinuation

Replacements or upgrades are available as technology advances

Several Key Reasons to Choose This Product

Texas Instruments' reputation for reliability

Wide operating voltage range suitable for diverse applications

High temperature tolerance, ensuring a stable performance under extreme conditions

Surface Mount form factor for compact PCB designs

The device is supplied in tape and reel packaging for efficient assembly

Part of the robust 74LV logic family, providing proven performance
