SN65DSI85ZXHR - Texas Instruments

Manufacturer Part Number

SN65DSI85ZXHR

Manufacturer

Texas Instruments

Introduction

Dual-Channel MIPI DSI to Dual-Link LVDS Bridge

Product Features and Performance

Supports high-resolution dual-link LVDS output

MIPI DSI Receiver with up to 4 data lanes per channel

High-speed data transmission up to 1 Gbps per lane

Automatic DSI data rate detection

Low Electromagnetic Interference (EMI) design

Product Advantages

Enables connection of MIPI compliant displays to legacy LVDS interfaces

Supports a wide range of display resolutions

Power-efficient operation for battery-powered devices

Scalable solution for multi-display applications

Key Technical Parameters

Dual-channel DSI to dual-link LVDS conversion

65V to 1.95V supply voltage range

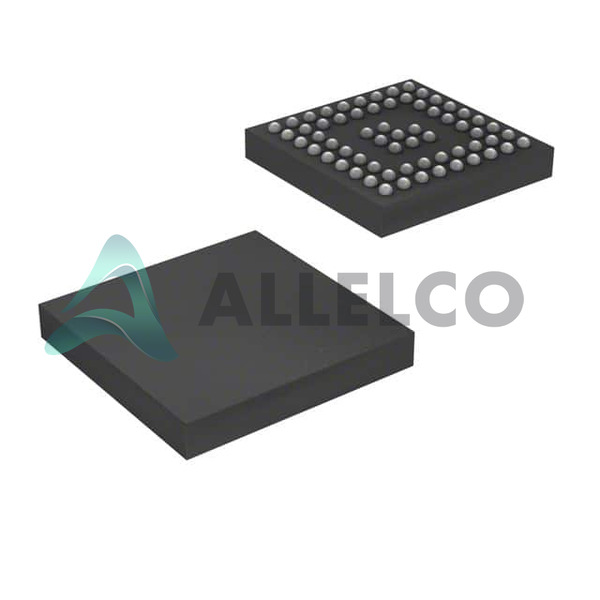

64-VFBGA package form factor

5x5 NFBGA device package

Quality and Safety Features

Robust ESD protection

Lead-free and RoHS compliant

Extensive product validation and testing

Compatibility

Compatible with a variety of MIPI DSI sources

Supports common LVDS display panel resolutions

Application Areas

Primarily designed for notebook computers

Adaptable to tablets, smartphones, and other mobile devices requiring display bridging solutions

Product Lifecycle

Currently active product with ongoing manufacturer support

No imminent discontinuation, replacements or upgrades indicated

Several Key Reasons to Choose This Product

Facilitates seamless integration of modern display technologies with older interfaces

Multi-lane DSI support offers flexibility for various display configurations

Bridging solution adds product value through display enhancements without major redesign

Texas Instruments' reputation for reliable, industry-standard interface solutions

Comprehensive technical support and documentation available from the manufacturer
