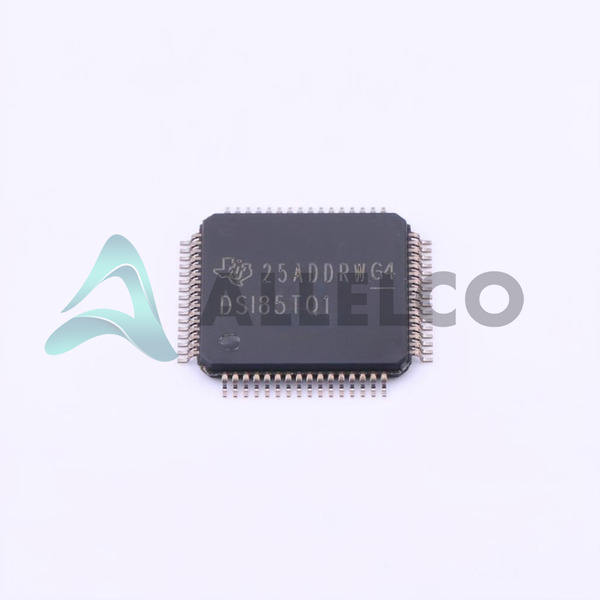

SN65DSI85TPAPRQ1 - Texas Instruments

Manufacturer Part Number

SN65DSI85TPAPRQ1

Manufacturer

Texas Instruments

Introduction

The SN65DSI85TPAPRQ1 is an automotive-qualified interface chip designed for LCD display bridging.

Product Features and Performance

Supports MIPI DSI to dual-link LVDS bridging

Up to 10 Gbps bandwidth over MIPI DSI

Automatic detection of incoming DSI video format

Internal color bar and color square test pattern generation

Programmable through I2C interface

Product Advantages

High-speed operation ideal for automotive infotainment systems

Integrated termination resistors minimize external components

Supports a wide range of LCD panel resolutions

Compliance with AEC-Q100 automotive qualification standards

Key Technical Parameters

Interface: I2C

Voltage Supply Range: 1.65V to 1.95V

Package/Case: 64-PowerTQFP

Device Package: 64-HTQFP (10x10)

Grade: Automotive

Qualification: AEC-Q100

Mounting Type: Surface Mount

Base Product Number: 65DSI85

Quality and Safety Features

Automotive-grade product reliability

AEC-Q100 qualification ensures robustness under extreme conditions

Over-temperature protection

Compatibility

Compatible with a wide variety of MIPI DSI video sources and LVDS displays

MIPI DSI protocol support

Application Areas

Automotive infotainment systems

Navigation systems

Rear-seat entertainment

Digital dashboards

Product Lifecycle

Active product status

Not currently near discontinuation

Replacements or upgrades are generally available if needed

Several Key Reasons to Choose This Product

Texas Instruments' renowned manufacturing reliability and quality

Automotive-optimized design for robust performance

High-speed bridge solution suitable for advanced display systems

Flexible interfacing and configuration options

Supports safety-critical systems with quality and safety features

Continuous manufacturer support and active product lifecycle status
