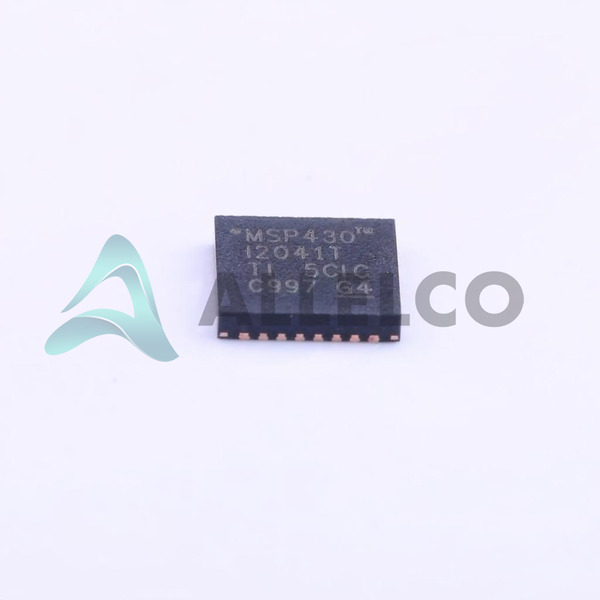

MSP430I2041TRHBR - Texas Instruments

Manufacturer Part Number

MSP430I2041TRHBR

Manufacturer

Texas Instruments

Introduction

Microcontroller designed for measurement and control applications

Product Features and Performance

16-Bit MSP430 CPU Core

32KB Program FLASH Memory

2KB RAM

16 General Purpose I/O Pins

Speed up to 16.384MHz

Advanced Sigma-Delta A/D Converters

Supports I2C, IrDA, SCI, SPI, UART/USART Communication

Brown-out Detect/Reset

Pulse-Width Modulation (PWM) Control

Watchdog Timer (WDT)

Product Advantages

Low power consumption for battery-operated applications

High resolution A/D conversion for precise measurements

Flexible communication options for easy peripheral integration

Robust design enabling operation in harsh environments

Key Technical Parameters

Core Size: 16-Bit

Speed: 16.384Mhz

Program Memory Size: 32KB (32K x 8)

RAM Size: 2K x 8

Voltage Supply Range: 2.2V to 3.6V

Data Converters: 4x24b Sigma-Delta A/D

Operating Temperature Range: -40°C to 105°C

Quality and Safety Features

Built-in Brown-out Detect/Reset for system reliability

Watchdog Timer (WDT) to ensure the system continues to operate properly

Compatibility

Compatible with various communication protocols

Supports external oscillators for precise clocking

Application Areas

Industrial control systems

Measurement equipment

Smart grid and energy management

Product Lifecycle

Active status product

Supplier Device Package: 32-VQFN (5x5)

No imminent discontinuation notice

Several Key Reasons to Choose This Product

Low-power design for extended battery life in portable applications

Scalable from small to complex systems due to a comprehensive feature set

High integration level reduces overall system cost and complexity

Texas Instruments' reputation for reliability and support

Operating temperature range suitable for industrial applications

Advanced A/D converters ideal for precision measurement systems
