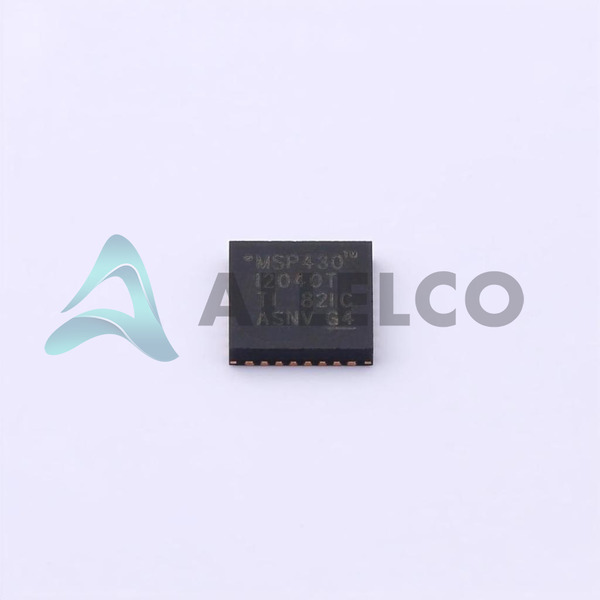

MSP430I2040TRHBR - Texas Instruments

Manufacturer Part Number

MSP430I2040TRHBR

Manufacturer

Texas Instruments

Introduction

The MSP430I2040TRHBR is an embedded microcontroller from Texas Instruments, designed for low-power and precise sensor measurement applications.

Product Features and Performance

16-Bit MSP430 CPU16 Core Processor

High-performance signal processing

Low power consumption

Speed of 16.384 MHz

Advanced connectivity options including I2C, IrDA, SCI, SPI, UART/USART

Integrated brown-out detect/reset, PWM, WDT peripherals

16 I/O ports for versatile interfacing

16KB FLASH program memory

RAM size of 1K x 8 for data storage

A/D converters with 4x24 bit Sigma-Delta resolution

Supports external oscillators for timing precision

Product Advantages

Exceptional power efficiency for battery-dependent applications

Rich set of features in a compact 32-VQFN (5x5) package

Reliable for industrial temperature ranges from -40°C to 105°C

Easy to mount with surface-mount technology

Designed for accurate sensor data acquisition

Key Technical Parameters

Core Size: 16-Bit

Speed: 16.384Mhz

Program Memory Size: 16KB (16K x 8)

RAM Size: 1K x 8

Voltage Supply Range: 2.2V ~ 3.6V

Operating Temperature: -40°C ~ 105°C

Quality and Safety Features

Brown-out detect/reset for system integrity

Watchdog Timer (WDT) to prevent system crashes

Compatibility

Compatible with a range of industry-standard communication protocols and peripheral devices

Easily integrates with external oscillators

Application Areas

Consumer electronics

Sensing and instrumentation

Communication infrastructure

Industrial and factory automation

Product Lifecycle

Product Status: Active

This product is not nearing discontinuation and thus is expected to have continued support and availability.

Key Reasons to Choose This Product

High precision A/D converters suitable for detailed sensor measurements

Durable and reliable for extreme industrial conditions with an extended operating temperature range

Extensive connectivity options for modern communication needs

Proven quality from Texas Instruments, a leader in semiconductor solutions

Support and availability from an active product lifecycle status
