MSP430G2755IDA38R - Texas Instruments

Manufacturer Part Number

MSP430G2755IDA38R

Manufacturer

Texas Instruments

Introduction

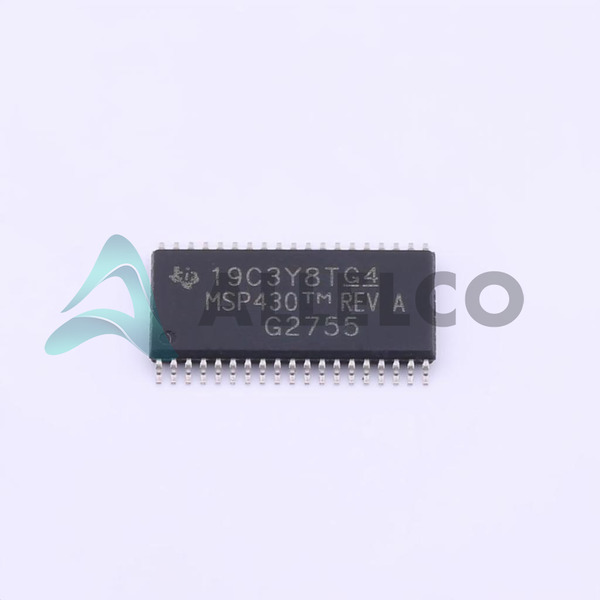

The MSP430G2755IDA38R is a 16-bit microcontroller from Texas Instruments, designed for low-power and high-performance applications, housed in a 38-TSSOP package.

Product Features and Performance

Core Processor: MSP430 CPU16

Speed: 16 MHz

Connectivity includes I2C, IrDA, LINbus, SCI, SPI, UART/USART

Peripherals: Brown-out Detect/Reset, Power-on Reset, Watchdog Timer

Number of I/O: 32

Program Memory Size: 32KB (FLASH)

RAM Size: 4KB

Internal Oscillator

A/D Converters: 12 channels, 10-bit resolution

Product Advantages

Energy efficient with extensive connectivity options

Large set of embedded peripherals enhancing functionality

Generous memory capacity for complex operations

Key Technical Parameters

Program Memory: 32KB FLASH

RAM: 4KB

I/O Count: 32

Operating Voltage: 1.8V to 3.6V

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Brown-out Detect/Reset ensures stability under low voltage

Watchdog Timer for system reliability

Compatibility

Compatible with MSP430 CPU16 development tools

Application Areas

Industrial controls

Consumer electronics

Automation systems

Portable medical devices

Product Lifecycle

Currently active with no planned discontinuation

Future upgrades or replacements will be available

Several Key Reasons to Choose This Product

High-speed 16MHz performance supports demanding applications

Comprehensive connectivity supports multiple communication standards

Strong support for analog tasks with integrated A/D converters

Reliable in extreme conditions with a wide operational temperature range

Robust quality features promote system stability and safety
