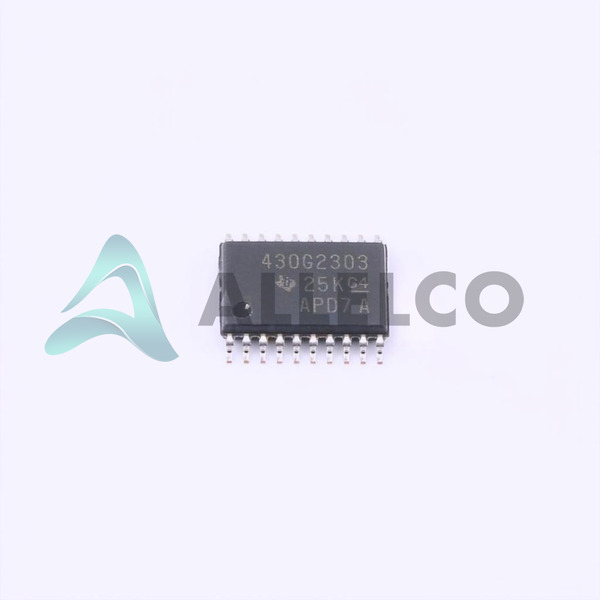

MSP430G2303IPW20R - Texas Instruments

Manufacturer Part Number: MSP430G2303IPW20R

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430G2303IPW20R

ECAD Model

Parts Description: IC MCU 16BIT 4KB FLASH 20TSSOP

Package: 20-TSSOP (0.173', 4.40mm Width)

Data sheet: MSP430G2x33,x03 Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 54500

EXPRESS OPTION

Payment method

Our certification

Specifications

MSP430G2303IPW20R Tech Specifications
Texas Instruments - MSP430G2303IPW20R technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430G2303IPW20R

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	20-TSSOP
Speed	16MHz
Series	MSP430G2xx
RAM Size	256 x 8
Program Memory Type	FLASH
Program Memory Size	4KB (4K x 8)
Peripherals	Brown-out Detect/Reset, PWM, WDT
Package / Case	20-TSSOP (0.173', 4.40mm Width)
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	16
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	-
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number	MSP430G2303

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430G2303IPW20R

Manufacturer

Texas Instruments

Introduction

The MSP430G2303IPW20R is an embedded microcontroller from Texas Instruments' MSP430G2xx Series designed for low-power and mixed-signal applications.

Product Features and Performance

16-Bit MSP430 CPU

16MHz Clock Speed

I2C, IrDA, LINbus, SCI, SPI, UART/USART Connectivity Options

Brown-out Detect/Reset, PWM, and WDT Peripherals

16 I/O Ports

4KB FLASH Memory

Product Advantages

Low Power Consumption

Versatile Connectivity and Peripheral Set

Internal Oscillator for Simplified Design

Suitable for Operation in Harsh Temperature Conditions (-40°C to +85°C)

Key Technical Parameters

16-Bit Core Size

Up to 16MHz Operating Speed

4KB Program Memory Size

256x8 RAM Size

8V to 3.6V Supply Voltage Range

20-TSSOP Mounting Type

Quality and Safety Features

Brown-out Detection and Reset for System Protection

Watchdog Timer (WDT) to Prevent System Lock-ups

Compatibility

Compatible with Various Texas Instruments Development Tools

Standard TSSOP (20-Pins) Package for Broad PCB Compatibility

Application Areas

Consumer Electronics

Automation and Process Control

Portable and Battery-Powered Devices

Sensor Systems

Product Lifecycle

Status: Active

Manufacturer Provides Ongoing Support

Several Key Reasons to Choose This Product

Low Power Operation Extends Battery Life

Robust Serial Connectivity Features Support Multiple Communication Protocols

Compact Design Easy to Incorporate into Various Circuit Boards

Texas Instruments’ Reliability and Support

Wide Operating Temperature Range Suitable for Various Environments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430G2303IPW20R

Product Attribute
Part Number	MSP430G2303IPW20R	MSP430G2313IPW28R	MSP430G2303IPW28R	MSP430G2313IPW28
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Oscillator Type	Internal	Internal	Internal	Internal
Data Converters	-	-	-	-
Series	MSP430G2xx	MSP430G2xx	MSP430G2xx	MSP430G2xx
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	20-TSSOP (0.173', 4.40mm Width)	28-TSSOP (0.173", 4.40mm Width)	28-TSSOP (0.173", 4.40mm Width)	28-TSSOP (0.173', 4.40mm Width)
RAM Size	256 x 8	256 x 8	256 x 8	256 x 8
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Peripherals	Brown-out Detect/Reset, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Base Product Number	MSP430G2303	MSP430G2313	MSP430G2303	MSP430G2313
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V
Program Memory Type	FLASH	FLASH	FLASH	FLASH
Supplier Device Package	20-TSSOP	28-TSSOP	28-TSSOP	28-TSSOP
Core Processor	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16
EEPROM Size	-	-	-	-
Speed	16MHz	16MHz	16MHz	16MHz
Number of I/O	16	24	24	24
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tube
Program Memory Size	4KB (4K x 8)	4KB (4K x 8)	4KB (4K x 8)	4KB (4K x 8)
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART
