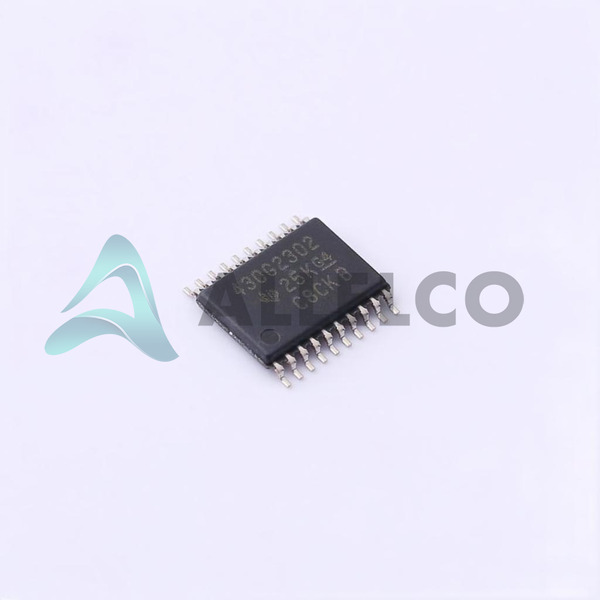

MSP430G2302IPW20R - Texas Instruments

Name: Texas Instruments MSP430G2302IPW20R
Brand: Texas Instruments
SKU: MSP430G2302IPW20R
Availability: InStock
Rating: 5 (8 reviews)

Manufacturer Part Number: MSP430G2302IPW20R

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430G2302IPW20R

ECAD Model

Parts Description: IC MCU 16BIT 4KB FLASH 20TSSOP

Package: 20-TSSOP (0.173', 4.40mm Width)

Data sheet: MSP430G2x32,MSP430G2x02 Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 51590

EXPRESS OPTION

Payment method

Our certification

Specifications

MSP430G2302IPW20R Tech Specifications
Texas Instruments - MSP430G2302IPW20R technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430G2302IPW20R

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	20-TSSOP
Speed	16MHz
Series	MSP430G2xx
RAM Size	256 x 8
Program Memory Type	FLASH
Program Memory Size	4KB (4K x 8)
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Package / Case	20-TSSOP (0.173', 4.40mm Width)
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	16
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	-
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	I²C, SPI, USI
Base Product Number	MSP430G2302

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430G2302IPW20R

Manufacturer

Texas Instruments

Introduction

The MSP430G2302IPW20R is a low-power, 16-bit microcontroller from Texas Instruments, part of the MSP430G2xx series.

Product Features and Performance

16-bit MSP430 CPU

4KB of FLASH program memory

256 bytes of RAM

16 I/O pins

Internal oscillator

Peripherals: Brown-out detect/reset, DMA, POR, PWM, Watchdog Timer

Operating voltage range: 1.8V to 3.6V

Operating temperature range: -40°C to 85°C

Product Advantages

Ultra-low power consumption

Integrated peripherals for versatile applications

Easy to program and develop with

Key Technical Parameters

16-bit CPU

4KB FLASH program memory

256 bytes RAM

16MHz maximum clock speed

16 I/O pins

8V to 3.6V operating voltage range

Quality and Safety Features

RoHS3 compliant

20-TSSOP package

Compatibility

Compatible with other MSP430G2xx series microcontrollers

Application Areas

Portable devices

Sensing and monitoring applications

Low-power embedded systems

Product Lifecycle

Currently in production

Replacement or upgrade options available within the MSP430G2xx series

Key Reasons to Choose

Excellent power efficiency

Broad peripheral set for versatile applications

Easy to program and integrate into designs

Long-term availability and support from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430G2302IPW20R

Product Attribute
Part Number	MSP430G2302IPW20R	MSP430G2303IPW20R	MSP430G2302IPW14R	MSP430G2313IPW28
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V
RAM Size	256 x 8	256 x 8	256 x 8	256 x 8
Series	MSP430G2xx	MSP430G2xx	MSP430G2xx	MSP430G2xx
Connectivity	I²C, SPI, USI	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, SPI, USI	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Oscillator Type	Internal	Internal	Internal	Internal
Package / Case	20-TSSOP (0.173', 4.40mm Width)	20-TSSOP (0.173', 4.40mm Width)	14-TSSOP (0.173", 4.40mm Width)	28-TSSOP (0.173', 4.40mm Width)
Data Converters	-	-	-	-
Speed	16MHz	16MHz	16MHz	16MHz
Supplier Device Package	20-TSSOP	20-TSSOP	14-TSSOP	28-TSSOP
Program Memory Type	FLASH	FLASH	FLASH	FLASH
Core Processor	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
EEPROM Size	-	-	-	-
Program Memory Size	4KB (4K x 8)	4KB (4K x 8)	4KB (4K x 8)	4KB (4K x 8)
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Number of I/O	16	16	10	24
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Base Product Number	MSP430G2302	MSP430G2303	MSP430G2302	MSP430G2313
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tube
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT
