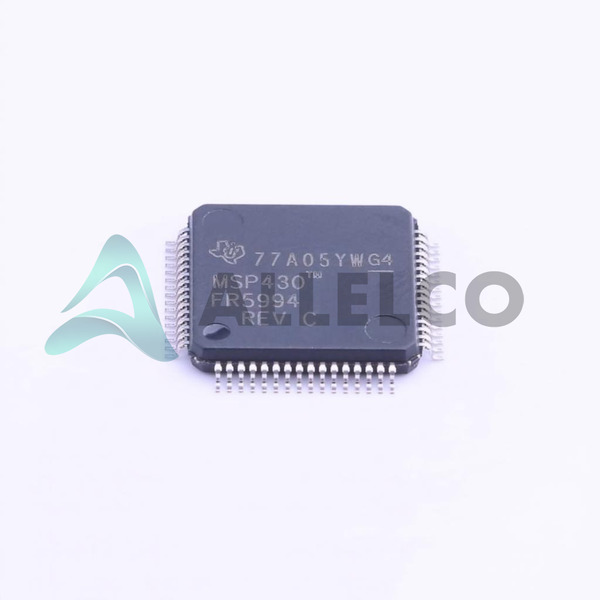

MSP430FR5994IPMR - Texas Instruments

Manufacturer Part Number

MSP430FR5994IPMR

Manufacturer

Texas Instruments

Introduction

MSP430FR5994IPMR is a 16-bit microcontroller featuring low power consumption and integrated FRAM memory, suitable for sensing and measurement applications.

Product Features and Performance

16-bit MSP430 CPUXV2 core processor

Operating speed of 16 MHz

Supports I2C, IrDA, SPI, and UART/USART for connectivity

Features peripherals like Brown-out Detect/Reset, DMA, POR, PWM, WDT

54 I/O pins for extensive interfacing options

256KB of programmable FRAM memory

8KB RAM

A/D converter with 17 channels, 12-bit resolution

Product Advantages

Low power consumption

Non-volatile FRAM for faster writes, high endurance and retention

Comprehensive connectivity options enabling versatile applications

Advanced control and timing peripherals enhancing performance

Key Technical Parameters

Core Size: 16-Bit

Speed: 16MHz

Program Memory Size: 256KB

RAM Size: 8K x 8

Voltage Supply: 1.8V ~ 3.6V

Quality and Safety Features

Brown-out Detect/Reset ensures stable operation under fluctuating power

Watchdog Timer prevents system hang-ups

Compatibility

Compatible with surface mount technology for streamlined PCB design

Application Areas

Industrial automation

Sensing applications

Consumer electronics

Data logging systems

Product Lifecycle

The product status is active

Not nearing discontinuation and has support for replacements or upgrades

Several Key Reasons to Choose This Product

Extensive 54 I/O port diversity allows integration into multi-faceted systems

FRAM memory combines the speed of RAM with the persistence of flash

Low voltage operation minimizes power consumption with variability from 1.8V to 3.6V

Robust operating temperature range from -40°C to 85°C supports deployment in harsh environments

The MSP430™ FRAM series is renowned for its reliability and performance in embedded applications.
