Manufacturer Part Number

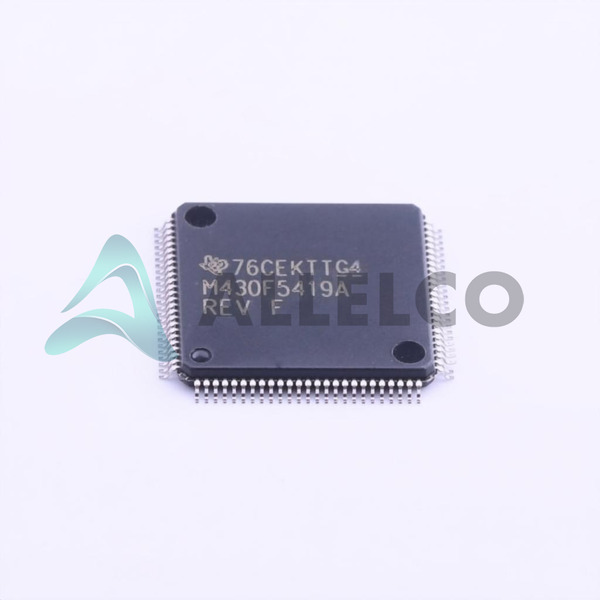

MSP430F5419AIPZ
Manufacturer
Texas Instruments
Introduction
MSP430F5419AIPZ is a 16-bit ultra-low-power microcontroller with a rich set of integrated peripherals, targeting a wide range of applications.
Product Features and Performance
MSP430 CPUXV2 core, optimized for low-power operation
Core Size: 16-Bit
Max Speed: 25MHz
Integrated peripherals for enhanced performance
Product Advantages
Low power consumption suitable for battery-powered applications
Rich set of connectivity options for various communication protocols
Large number of I/Os for extensive peripheral and sensor integration
Ample program memory and RAM for complex applications
Key Technical Parameters
Program Memory Size: 128KB FLASH
RAM Size: 16K x 8
Data Converters: A/D 16x12b
87 I/O pins
Connectivity: I2C, IrDA, LINbus, SCI, SPI, UART/USART
Voltage Supply Range: 1.8V to 3.6V
Quality and Safety Features
Brown-out Detect/Reset
Power-on Reset (POR)
Watchdog Timer (WDT) for system integrity
Compatibility
Compatible with many development and debugging tools offered by Texas Instruments
Interfacing compatible with a wide range of external components
Application Areas
Industrial automation
Consumer Electronics
Sensing and measurement applications
Energy management
Portable and battery-powered devices
Product Lifecycle
Product Status: Active
Not nearing discontinuation
Upgrades or replacements are generally available through Texas Instruments' extensive microcontroller portfolio
Several Key Reasons to Choose This Product
Low power operation prolongs battery life in portable devices
High integration reduces total system cost and complexity
Wide range of connectivity options offers flexibility in system design
Large number of I/Os helps manage more complex systems
Advanced control peripherals like DMA, PWM ensure efficient system performance
