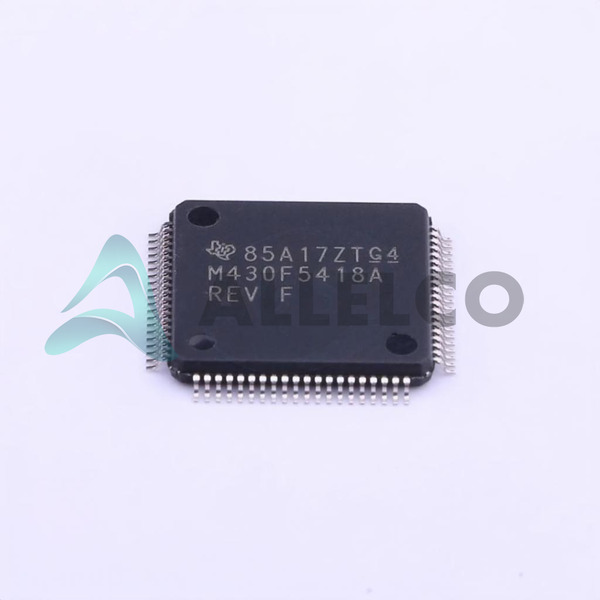

MSP430F5418AIPNR - Texas Instruments

Manufacturer Part Number

MSP430F5418AIPNR

Manufacturer

Texas Instruments

Introduction

The MSP430F5418AIPNR is a 16-bit microcontroller from Texas Instruments, designed for low-power and high-performance applications.

Product Features and Performance

16-Bit MSP430 CPUXV2 core

Maximum speed of 25MHz

Multiple connectivity options: I2C, IrDA, LINbus, SCI, SPI, UART/USART

Equipped with peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, WDT

67 I/O pins

128KB FLASH Program Memory

16K x 8 RAM

Integrated 12-bit Analog to Digital Converters (16 channels)

Internal Oscillator

Product Advantages

Low power consumption

High integration with extensive peripheral set

Flexible communication interfaces

Key Technical Parameters

Core Size: 16-Bit

Speed: 25MHz

Program Memory Size: 128KB

RAM Size: 16K x 8

Voltage Supply: 1.8V to 3.6V

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Brown-out Reset for voltage monitoring

Watchdog Timer for system reliability

Power-On Reset to ensure proper system start-up

Compatibility

Compatible with various communication protocols

Compatible with 5V and 3.3V logic levels

Application Areas

Industrial automation

Sensor management

Consumer electronics

Energy management

Product Lifecycle

Currently Active

Not nearing discontinuation

Future replacements or upgrades available

Several Key Reasons to Choose This Product

Robust operating temperature range suitable for extreme environments

Scalable memory options tailored for different application needs

High number of I/Os providing extensive interfacing capabilities

Low power consumption ensuring longer battery life in portable applications

Diverse and robust connectivity features suitable for different communication needs
