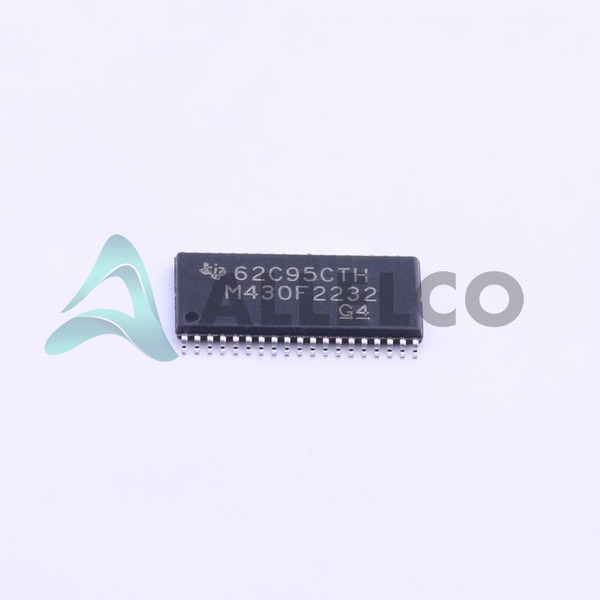

MSP430F2232IDAR - Texas Instruments

Manufacturer Part Number: MSP430F2232IDAR

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430F2232IDAR

ECAD Model

Parts Description: IC MCU 16BIT 8KB FLASH 38TSSOP

Package: 38-TSSOP (0.240", 6.10mm Width)

Data sheet: MSP430x2xx User Guide.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 19472

EXPRESS OPTION

Payment method

Our certification

Specifications

MSP430F2232IDAR Tech Specifications
Texas Instruments - MSP430F2232IDAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430F2232IDAR

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	38-TSSOP
Speed	16MHz
Series	MSP430F2xx
RAM Size	512 x 8
Program Memory Type	FLASH
Program Memory Size	8KB (8K x 8 + 256B)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	38-TSSOP (0.240", 6.10mm Width)
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	32
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 12x10b
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number	MSP430F2232

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001
