Home Products Integrated Circuits (ICs)Embedded - Microcontrollers~~MSP430F2132TPWR~~

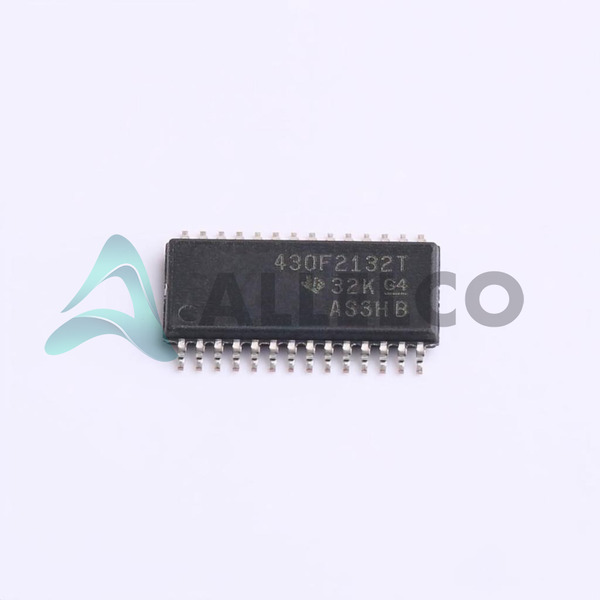

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

MSP430F2132TPWR - Texas Instruments

Name: Texas Instruments MSP430F2132TPWR
Brand: Texas Instruments
SKU: MSP430F2132TPWR
Availability: InStock
Rating: 5 (8 reviews)

Manufacturer Part Number: MSP430F2132TPWR

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430F2132TPWR

ECAD Model

Parts Description: IC MCU 16BIT 8KB FLASH 28TSSOP

Package: 28-TSSOP (0.173", 4.40mm Width)

Data sheet: MSP430x2xx User Guide.pdf
MSP430F21x2 Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 15405

EXPRESS OPTION

Payment method

Our certification

Specifications

MSP430F2132TPWR Tech Specifications
Texas Instruments - MSP430F2132TPWR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430F2132TPWR

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	28-TSSOP
Speed	16MHz
Series	MSP430F2xx
RAM Size	512 x 8
Program Memory Type	FLASH
Program Memory Size	8KB (8K x 8 + 256B)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	28-TSSOP (0.173", 4.40mm Width)
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Number of I/O	24
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 8x10b
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number	MSP430F2132

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430F2132TPWR

Manufacturer

Texas Instruments

Introduction

Low-Power Mixed-Signal Microcontroller

Product Features and Performance

16MHz MSP430 CPU16 Core

8KB Flash Memory

512 Bytes RAM

8-Channel 10-bit A/D Converter

24 I/O Pins

Internal Oscillator

Low Power Consumption

Product Advantages

Efficient 16-Bit RISC Architecture

Flexible Power Management System

Strong Emphasis on Embedded Applications

Key Technical Parameters

Core Size: 16-Bit

Speed: 16MHz

Program Memory: 8KB Flash

RAM: 512B

Voltage Supply: 1.8V to 3.6V

Operating Temperature: -40°C to 105°C

Quality and Safety Features

Brown-out Detect/Reset

Power-On Reset

Compatibility

I2C, IrDA, LINbus, SCI, SPI, UART/USART

Supports Multiple Communication Protocols

Application Areas

Consumer Electronics

Industrial Control

Automation Systems

Medical Devices

Product Lifecycle

Active Status

Not Reported as Nearing Discontinuation

Key Reasons to Choose This Product

High Performance-to-Power Ratio

Flexible and Versatile for Various Applications

Robust Operating Temperature Range

Supported by Texas Instruments' Comprehensive Development Tools

Cost-Effective With Integrated Features Reducing External Component Need

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430F2132TPWR

Product Attribute
Part Number	MSP430F2132TPWR	MSP430F2132TRHBT	MSP430F2132IRHBR	MSP430F2232IRHAR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
RAM Size	512 x 8	512 x 8	512 x 8	512 x 8
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V
Program Memory Type	FLASH	FLASH	FLASH	FLASH
Data Converters	A/D 8x10b	A/D 8x10b	A/D 8x10b	A/D 12x10b
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Oscillator Type	Internal	Internal	Internal	Internal
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Base Product Number	MSP430F2132	MSP430F2132	MSP430F2132	MSP430F2232
Core Processor	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16
EEPROM Size	-	-	-	-
Speed	16MHz	16MHz	16MHz	16MHz
Supplier Device Package	28-TSSOP	32-VQFN (5x5)	32-VQFN (5x5)	40-VQFN (6x6)
Number of I/O	24	24	24	32
Package / Case	28-TSSOP (0.173", 4.40mm Width)	32-VFQFN Exposed Pad	32-VFQFN Exposed Pad	40-VFQFN Exposed Pad
Series	MSP430F2xx	MSP430F2xx	MSP430F2xx	MSP430F2xx
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Operating Temperature	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Program Memory Size	8KB (8K x 8 + 256B)	8KB (8K x 8 + 256B)	8KB (8K x 8 + 256B)	8KB (8K x 8 + 256B)

MSP430F2132TPWR Datasheet PDF

Download MSP430F2132TPWR pdf datasheets and Texas Instruments documentation for MSP430F2132TPWR - Texas Instruments.

Datasheets: MSP430x2xx User Guide.pdf
PCN Design/Specification: Design 22/Feb/2022.pdf
HTML Datasheet: MSP430F21x2 Datasheet.pdf
Errata: MSP430F21x2 Errata.pdf
