Manufacturer Part Number

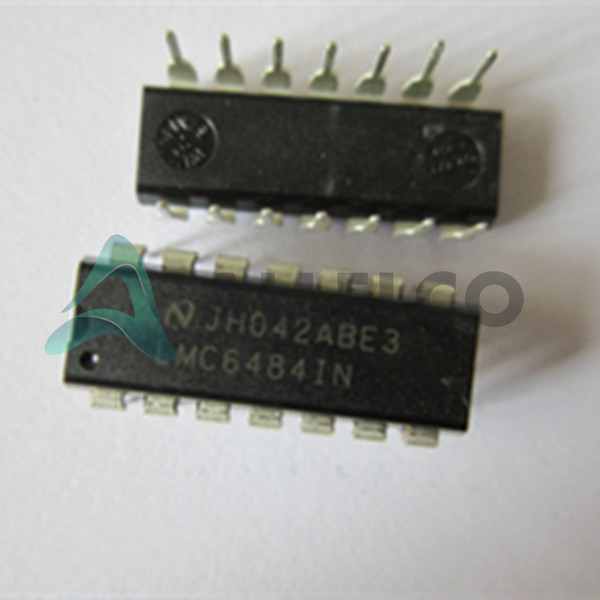

LMC6484IN
Manufacturer
Texas Instruments
Introduction
General purpose integrated circuit (IC) amplifier with 4 circuits
Designed for a wide range of analog signal amplification applications
Product Features and Performance
Rail-to-rail output
Gain bandwidth product of 1.5 MHz
Supply current of 2.6 mA
Slew rate of 1.3 V/μs
Input offset voltage of 110 μV
Input bias current of 0.02 pA
Operates from single supply of 3 V to 15.5 V or dual supplies of ±1.5 V to ±7.75 V
Wide operating temperature range of -45°C to 85°C
Product Advantages
Versatile general-purpose amplifier suitable for various analog signal conditioning applications
Low power consumption
High input impedance and low input bias current
Wide supply voltage and temperature range
Key Technical Parameters
4 independent amplifier circuits in a single package
Through-hole 14-DIP (Dual Inline Package) mounting
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Quality and Safety Features
Contains lead / RoHS non-compliant
Compatibility
Compatible with a wide range of analog circuit designs and applications
Application Areas
Analog signal conditioning
Sensor signal amplification
Instrumentation and test equipment
Industrial control systems
Audio and video signal processing
Product Lifecycle
This is an established product from Texas Instruments
Replacements and upgrades may be available, but the product is not nearing discontinuation
Several Key Reasons to Choose This Product
Versatile and reliable general-purpose amplifier
Low power consumption and high input impedance
Wide operating voltage and temperature range
Suitable for a variety of analog signal conditioning applications
