Manufacturer Part Number

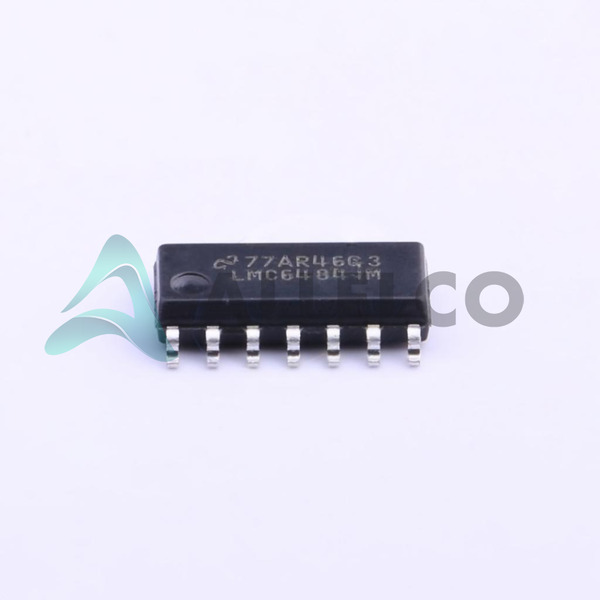

LMC6484IM
Manufacturer
Texas Instruments
Introduction
Quad Low-Power, CMOS Input, Rail-to-Rail Output Operational Amplifier
Product Features and Performance
Quad operational amplifier with CMOS inputs
Rail-to-rail output
Low power consumption
Wide supply voltage range of 3V to 15.5V
Slew rate of 1.3V/us
Gain bandwidth product of 1.5MHz
Input offset voltage of 110uV
Input bias current of 0.02pA
Output current of 30mA per channel
Product Advantages
Versatile quad op-amp design suitable for various analog circuits
Efficient power consumption makes it suitable for battery-powered applications
Wide operating temperature range of -40°C to 85°C
Key Technical Parameters
Supply voltage range: 3V to 15.5V
Quiescent current: 2.6mA per channel
Gain bandwidth product: 1.5MHz
Slew rate: 1.3V/us
Input offset voltage: 110uV
Input bias current: 0.02pA
Output current: 30mA per channel
Quality and Safety Features
RoHS non-compliant
Compatibility
14-SOIC package
Compatible with various analog circuit applications
Application Areas
Suitable for a wide range of analog circuit designs, including instrumentation, buffer amplifiers, and voltage followers
Product Lifecycle
Active product, no immediate plans for discontinuation
Replacement or upgrade options may be available from Texas Instruments
Several Key Reasons to Choose This Product
Versatile quad op-amp design for various analog applications
Efficient power consumption and wide supply voltage range
High performance specifications, including low input offset voltage, low input bias current, and high slew rate
Wide operating temperature range, making it suitable for diverse environmental conditions
Availability of replacement or upgrade options from the manufacturer
