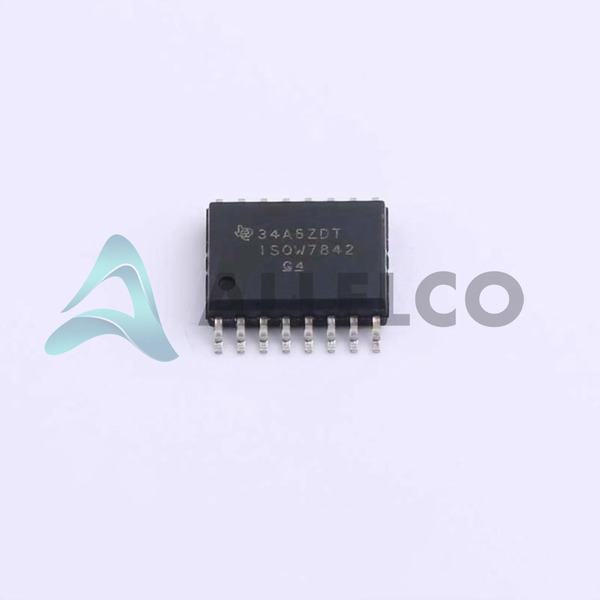

ISOW7842DWER - Texas Instruments

Manufacturer Part Number

ISOW7842DWER

Manufacturer

Texas Instruments

Introduction

The ISOW7842 is a high-performance digital isolator that provides 4 channels of digital isolation with high common-mode transient immunity and high data rates.

Product Features and Performance

4 channels of digital isolation

Capacitive coupling technology

Common mode transient immunity of 100 kV/s (min)

Data rate up to 100 Mbps

Rise/fall time of 2 ns (typ)

Propagation delay of 17.6 ns (max)

Pulse width distortion of 4.7 ns (max)

Isolated power

Product Advantages

High-speed digital isolation

Robust common-mode transient immunity

Small 16-SOIC package

Wide operating temperature range of -40°C to 125°C

RoHS3 compliant

Key Technical Parameters

Operating voltage range: 3 V to 5.5 V

Isolation voltage: 5000 Vrms

Number of channels: 4

Unidirectional channel type

Quality and Safety Features

RoHS3 compliant

Tape and reel packaging

Compatibility

Surface mount package

Compatible with a variety of digital systems

Application Areas

Industrial automation

Motor control

Power supplies

Medical equipment

Telecommunications

Product Lifecycle

Currently in production

Replacement or upgrade options available

Several Key Reasons to Choose This Product

High-performance digital isolation with excellent common-mode transient immunity

Wide operating temperature range and small package size

Reliable and RoHS3 compliant

Suitable for a variety of industrial and medical applications

Proven technology from a reputable manufacturer
