Specifications

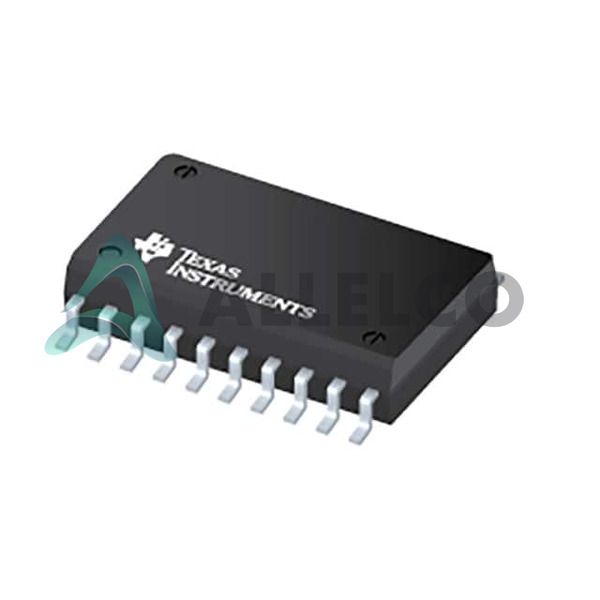

ISOW7743FDFMR Tech Specifications
Texas Instruments - ISOW7743FDFMR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ISOW7743FDFMR
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Texas Instruments |
|
| Voltage - Supply |
2.97V ~ 3.63V, 4.5V ~ 5.5V |
|
| Voltage - Isolation |
5000Vrms |
|
| Type |
General Purpose |
|
| Technology |
Capacitive Coupling |
|
| Supplier Device Package |
20-SOIC |
|
| Series |
ISOW774x |
|
| Rise / Fall Time (Typ) |
2.5ns, 2.4ns |
|
| Pulse Width Distortion (Max) |
5ns |
|
| Propagation Delay tpLH / tpHL (Max) |
15.7ns, 15.7ns |
|
| Package / Case |
20-SOIC (0.295", 7.50mm Width) |
|
| Product Attribute |
Attribute Value
| |
| Package |
Tape & Reel (TR) |
|
| Operating Temperature |
-40°C ~ 125°C |
|
| Number of Channels |
4 |
|
| Mounting Type |
Surface Mount |
|
| Isolated Power |
Yes |
|
| Inputs - Side 1/Side 2 |
1/3 |
|
| Data Rate |
100Mbps |
|
| Common Mode Transient Immunity (Min) |
85kV/µs |
|
| Channel Type |
Unidirectional |
|
| Base Product Number |
- |
|
