Manufacturer Part Number

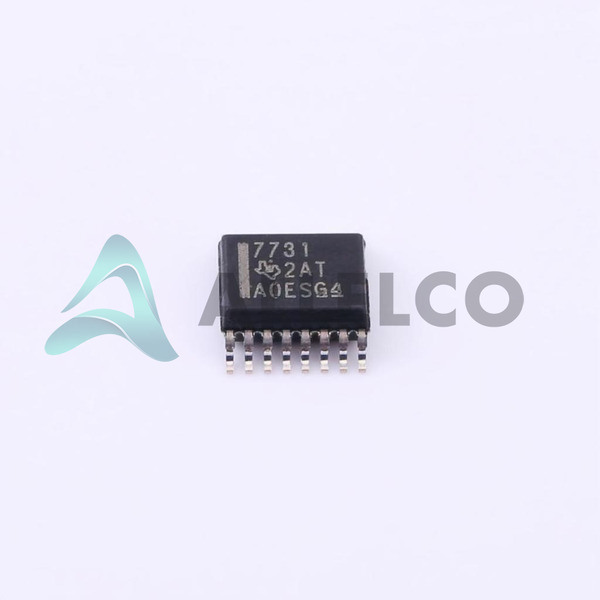

ISO7731DBQR
Manufacturer
Texas Instruments
Introduction
High-speed, 3-channel digital isolator
Provides galvanic isolation between digital systems
Product Features and Performance
100Mbps data rate
3000Vrms isolation voltage
3ns/1.4ns rise/fall time
16ns max propagation delay
9ns max pulse width distortion
85kV/s common mode transient immunity
Product Advantages
High-speed digital isolation
Low power consumption
Small package size
Key Technical Parameters
Operating temperature: -55°C to 125°C
Supply voltage: 2.25V to 5.5V
3 channels
Unidirectional channel type
Capacitive coupling technology
Quality and Safety Features
RoHS3 compliant
16-SSOP package
Compatibility
Surface mount
Tape and reel packaging
Application Areas
Industrial automation
Motor control
Power supplies
Instrumentation
Product Lifecycle
Current product, no plans for discontinuation
Replacement or upgrade options available
Key Reasons to Choose This Product
High-speed digital isolation with low power
Compact package size
Robust technical specifications
Trusted Texas Instruments quality and reliability
