Manufacturer Part Number

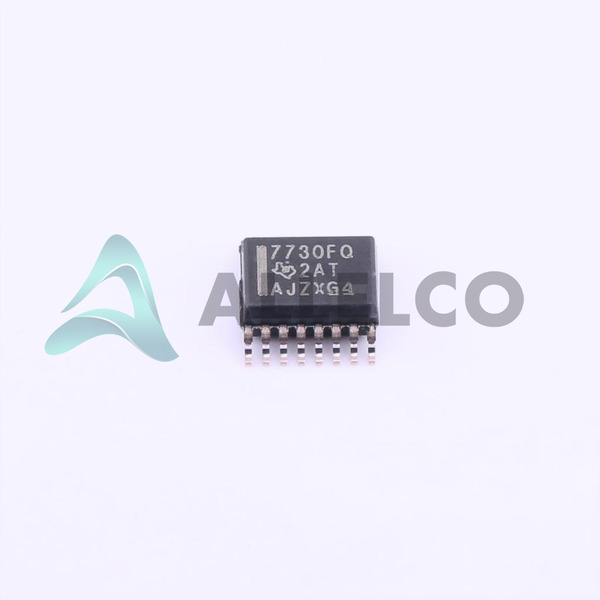

ISO7730FQDBQRQ1
Manufacturer
Texas Instruments
Introduction
High-speed, low-power digital isolators
Provide robust isolation between digital systems
Product Features and Performance
3-channel digital isolator
Capacitive coupling technology
Data rate up to 100Mbps
Common mode transient immunity (min) of 85kV/s
Propagation delay (max) of 16ns
Pulse width distortion (max) of 4.9ns
Rise/fall time (typ) of 1.3ns/1.4ns
Product Advantages
High-speed data transfer
Low power consumption
Robust isolation between systems
Compact 16-SSOP package
Key Technical Parameters
Operating temperature: -40°C to 125°C
Isolation voltage: 3000Vrms
Unidirectional channel type
25V to 5.5V supply voltage
Quality and Safety Features
RoHS3 compliant
AEC-Q100 qualified for automotive applications
Compatibility
Suitable for a wide range of digital systems
Application Areas
Industrial automation
Motor control
Power supplies
Automotive electronics
Product Lifecycle
Current product, no discontinuation planned
Replacement or upgrade options available
Key Reasons to Choose This Product
High-speed data transfer up to 100Mbps
Robust isolation up to 3000Vrms
Low power consumption
Compact 16-SSOP package
Automotive-qualified for reliable performance
