Manufacturer Part Number
INA180A3IDBVT
Manufacturer
Texas Instruments
Introduction
The INA180A3IDBVT is a high-precision, high-bandwidth current sense amplifier from Texas Instruments, designed for a wide range of industrial and consumer applications.
Product Features and Performance
Rail-to-rail output
Low input offset voltage of 100 μV
Low input bias current of 80 μA
High bandwidth of 350 kHz
Fast slew rate of 2 V/μs
Wide supply voltage range of 2.7 V to 5.5 V
Low supply current of 260 μA
Product Advantages
Excellent accuracy and precision for current sensing
High-speed operation suitable for fast-switching applications
Wide operating temperature range of -40°C to 125°C

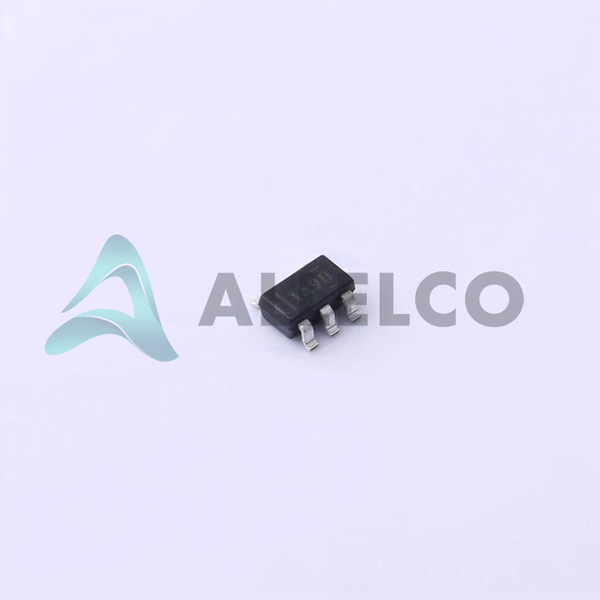

Small, space-saving SOT-23-5 package
Key Technical Parameters
Manufacturer Part Number: INA180A3IDBVT
Supply Voltage Range: 2.7 V to 5.5 V
Supply Current: 260 μA
Input Offset Voltage: 100 μV
Input Bias Current: 80 μA
Bandwidth: 350 kHz
Slew Rate: 2 V/μs
Operating Temperature Range: -40°C to 125°C
Quality and Safety Features
RoHS3 compliant
Manufactured in ISO-certified facilities
Compatibility
Compatible with various industrial and consumer electronics applications
Application Areas
Current sensing in motor control systems
Power supply monitoring
Battery management systems
Industrial automation and control
Telecommunications equipment
Automotive electronics
Product Lifecycle
The INA180A3IDBVT is an active product in Texas Instruments' portfolio. There are no immediate plans for discontinuation, and replacement or upgrade options may be available.
Key Reasons to Choose This Product
Excellent accuracy and precision for current sensing
High-speed operation suitable for fast-switching applications
Wide operating temperature range for industrial and automotive use
Small, space-saving package ideal for compact designs
Low power consumption and high energy efficiency
Reliable and durable performance with RoHS3 compliance
