Specifications

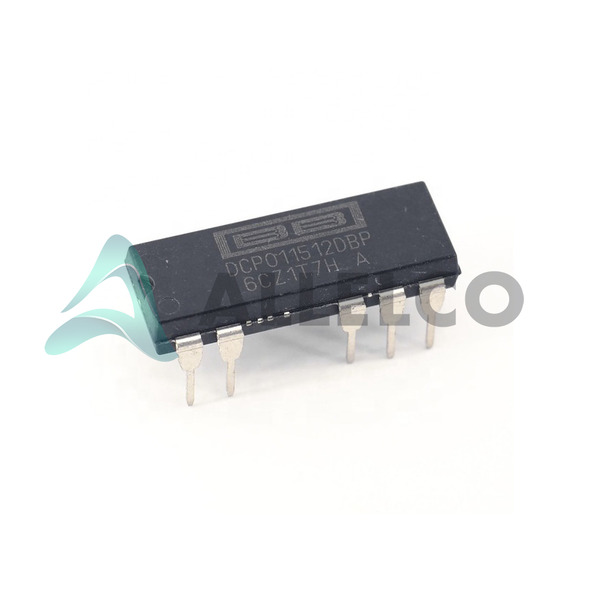

DCP011512DBP Tech Specifications
Texas Instruments - DCP011512DBP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DCP011512DBP
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Texas Instruments |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
-12V |
|
| Voltage - Output 1 |
12V |
|
| Voltage - Isolation |
1 kV |
|
| Voltage - Input (Min) |
13.5V |
|
| Voltage - Input (Max) |
16.5V |
|
| Type |
Isolated Module |
|
| Supplier Device Package |
7-PDIP |
|
| Size / Dimension |
0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
|
| Series |
DCP01B (1W) |
|
| Power (Watts) |
1 W |
|
| Product Attribute |
Attribute Value
| |
| Package / Case |
14-DIP (0.300", 7.62mm), 7 Leads |
|
| Package |
Tube |
|
| Operating Temperature |
-40°C ~ 100°C |
|
| Number of Outputs |
2 |
|
| Mounting Type |
Through Hole |
|
| Features |
OTP, SCP |
|
| Efficiency |
78% |
|
| Current - Output (Max) |
42mA, 42mA |
|
| Control Features |
Enable, Active High |
|
| Base Product Number |
DCP011512 |
|
| Applications |
ITE (Commercial) |
|
