HomeProductsPower Supplies - (Board Mount)DC DC ConvertersDCP010515DBP

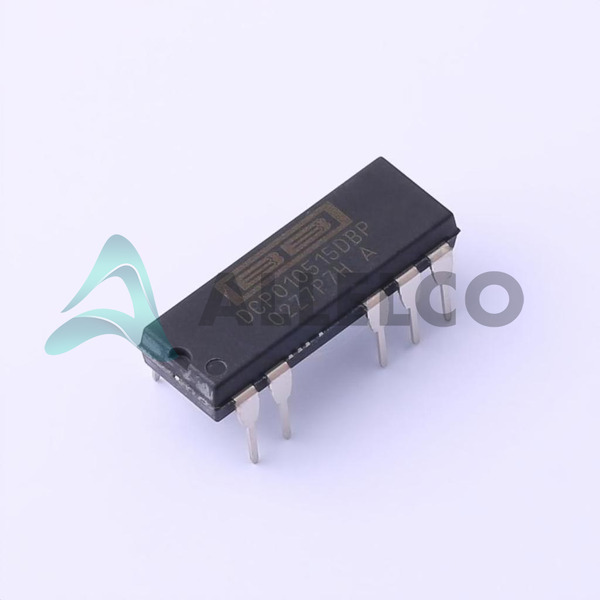

DCP010515DBP Image
DCP010515DBP Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

DCP010515DBP - Texas Instruments

Manufacturer Part Number
DCP010515DBP
Manufacturer
Texas Instruments
Allelco Part Number
32D-DCP010515DBP
ECAD Model
Parts Description
DC DC CONVERTER +/-15V 1W
Package
14-DIP (0.300', 7.62mm), 7 Leads
Data sheet
DCP010515DBP.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 4457

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

DCP010515DBP Tech Specifications
Texas Instruments - DCP010515DBP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DCP010515DBP

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 3 -
Voltage - Output 2 -15V
Voltage - Output 1 15V
Voltage - Isolation 1 kV
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Type Isolated Module
Supplier Device Package 7-PDIP
Size / Dimension 0.78' L x 0.33' W x 0.21' H (19.7mm x 8.3mm x 5.3mm)
Series DCP01B (1W)
Power (Watts) 1 W
Product Attribute Attribute Value
Package / Case 14-DIP (0.300', 7.62mm), 7 Leads
Package Tube
Operating Temperature -40°C ~ 100°C
Number of Outputs 2
Mounting Type Through Hole
Features OTP, SCP
Efficiency 85%
Current - Output (Max) 33mA, 33mA
Control Features Enable, Active High
Base Product Number DCP010515
Applications ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

DCP010515DBP

Manufacturer

Texas Instruments

Introduction

Isolated DC-DC converter module providing dual ±15V outputs from a single 4.5V to 5.5V input

Product Features and Performance

Isolation voltage of 1kV

Efficiency up to 85%

Operating temperature range of -40°C to +100°C

Compact 14-DIP (0.300", 7.62mm) package

Short-circuit protection and over-temperature protection

Product Advantages

Compact and efficient design

Wide operating temperature range

Robust protection features

Isolated outputs

Key Technical Parameters

Input voltage range: 4.5V to 5.5V

Output voltages: ±15V

Maximum output current: 33mA per output

Power rating: 1W

Quality and Safety Features

RoHS3 compliant

Isolated module design

Compatibility

Suitable for a variety of industrial and commercial applications

Application Areas

Industrial equipment

Instrumentation

Telecommunications

Medical equipment

Product Lifecycle

This product is an ongoing part of the DCP01B series from Texas Instruments and is not nearing discontinuation.

Replacement or upgrade options are available within the DCP01B series.

Key Reasons to Choose This Product

Compact and efficient design

Wide operating temperature range

Robust protection features

Isolated outputs for safety and performance

Proven reliability and quality from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DCP010515DBP

Product Attribute DCP010515DBP DCP010515BP-U DCP010515BP-U/700 DCP011512DBP
Part Number DCP010515DBP DCP010515BP-U DCP010515BP-U/700 DCP011512DBP
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Isolation 1 kV 1 kV 1 kV 1 kV
Applications ITE (Commercial) ITE (Commercial) ITE (Commercial) ITE (Commercial)
Supplier Device Package 7-PDIP - - 7-PDIP
Features OTP, SCP OTP, SCP OTP, SCP OTP, SCP
Package Tube Tube Tape & Reel (TR) Tube
Type Isolated Module Isolated Module Isolated Module Isolated Module
Mounting Type Through Hole Surface Mount Surface Mount Through Hole
Operating Temperature -40°C ~ 100°C -40°C ~ 100°C -40°C ~ 100°C -40°C ~ 100°C
Base Product Number DCP010515 DCP010515 DCP010515 DCP011512
Efficiency 85% 82% 82% 78%
Current - Output (Max) 33mA, 33mA 67mA 67mA 42mA, 42mA
Size / Dimension 0.78' L x 0.33' W x 0.21' H (19.7mm x 8.3mm x 5.3mm) 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Series DCP01B (1W) DCP01B (1W) DCP01B (1W) DCP01B (1W)
Package / Case 14-DIP (0.300', 7.62mm), 7 Leads 14-SMD Module, 7 Leads 14-SMD Module, 7 Leads 14-DIP (0.300", 7.62mm), 7 Leads
Voltage - Output 3 - - - -
Voltage - Output 1 15V 15V 15V 12V
Number of Outputs 2 1 1 2
Control Features Enable, Active High Enable, Active High Enable, Active High Enable, Active High
Voltage - Input (Min) 4.5V 4.5V 4.5V 13.5V
Voltage - Output 2 -15V - - -12V
Voltage - Input (Max) 5.5V 5.5V 5.5V 16.5V
Power (Watts) 1 W 1 W 1 W 1 W
