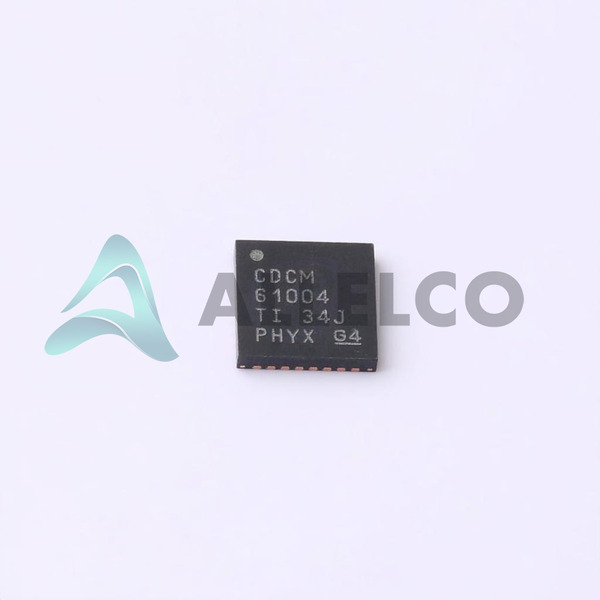

CDCM61004RHBR - Texas Instruments

Manufacturer Part Number

CDCM61004RHBR

Manufacturer

Texas Instruments

Introduction

High-precision clock generator for frequency synthesis applications

Product Features and Performance

Integrated PLL with Bypass option

Supports multiple outputs including LVCMOS, LVDS, and LVPECL

Single circuit integration

5 outputs from a single input source

Maximum frequency output of 683.27MHz

Surface Mount technology for PCB assembly

Product Advantages

Precision timing control for complex systems

Versatile output compatibility for various digital interfaces

Compact 32-VFQFN package for space-constrained applications

Efficient power supply rating of 3V to 3.6V

Key Technical Parameters

Input Types: LVCMOS, Crystal

Output Types: LVCMOS, LVDS, LVPECL

Number of Circuits: 1

Ratio - Input:Output: 1:5

Differential - Input:Output: No/Yes

Frequency - Max: 683.27MHz

Divider/Multiplier: Yes/No

Voltage - Supply: 3V ~ 3.6V

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Operational over a wide temperature range

Compliant with industry standards for electronic components

Compatibility

Suited for various digital interfaces requiring timing solutions

Application Areas

Telecommunications

Consumer electronics

Networking equipment

Data processing systems

Product Lifecycle

Status: Active

No immediate indication of discontinuation

Potential future replacement or upgrade options available through Texas Instruments

Several Key Reasons to Choose This Product

High reliability and accuracy for critical applications

Low power consumption supporting eco-friendly designs

Ease of integration with standardized QFN packaging

Provision for a wide range of industrial and commercial applications

Long-term support and product availability from Texas Instruments

Customizable output frequency range to meet comprehensive design needs

Built-in PLL for simplified design complexity
