Manufacturer Part Number

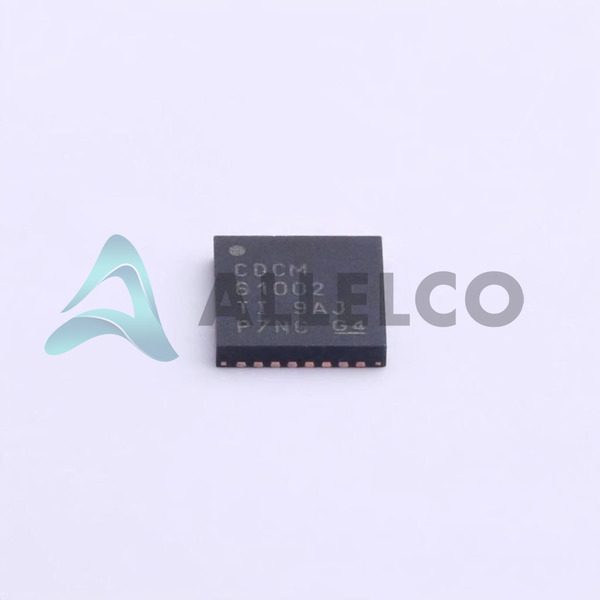

CDCM61002RHBR
Manufacturer
Texas Instruments
Introduction
High-performance clock generator with integrated PLL
Designed for a wide range of applications that require low-jitter clock signals
Product Features and Performance
Supports input frequencies up to 683.28 MHz
Generates multiple low-jitter output clock signals
Integrated PLL with programmable loop bandwidth
Configurable output waveforms (LVCMOS, LVDS, LVPECL)
1:3 input to output ratio
Product Advantages
Flexible clock generation with programmable features
Low jitter for high-speed digital applications
Comprehensive power management features
Small 32-VQFN package for compact designs
Key Technical Parameters
Operating voltage: 3V to 3.6V
Operating temperature: -40°C to 85°C
1 independent clock circuit
Divider and PLL with bypass
Quality and Safety Features
RoHS3 compliant
AEC-Q100 qualified for automotive applications
Compatibility
Surface mount package for ease of integration
Application Areas
Networking and telecommunications equipment
Servers and storage systems
Industrial and medical electronics
Automotive electronics
Product Lifecycle
Current product offering, not nearing discontinuation
Replacement and upgrade options available from Texas Instruments
Key Reasons to Choose This Product
High-performance clock generation with integrated PLL
Flexible configuration and low jitter for demanding applications
Compact package and comprehensive power management
Automotive and industrial grade quality and reliability
Supported by Texas Instruments' extensive product ecosystem
