CD74HCT4094M96 - Texas Instruments

Manufacturer Part Number

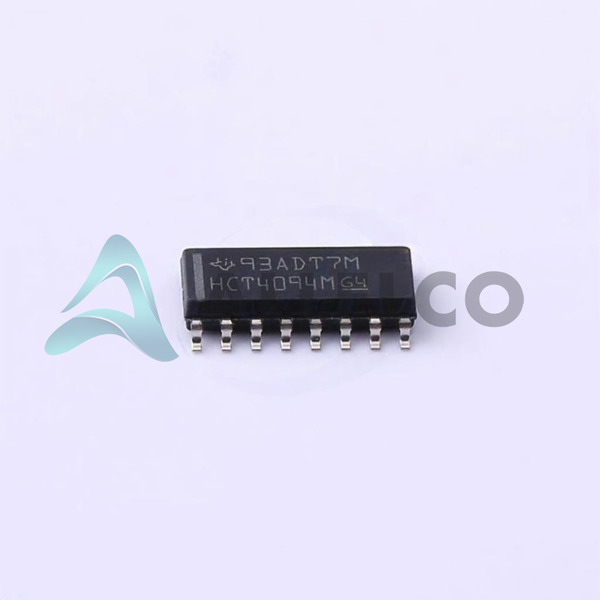

CD74HCT4094M96

Manufacturer

Texas Instruments

Introduction

The CD74HCT4094M96 is a high-speed Si-gate CMOS device and is pin compatible with the HEF4094B but has different electrical specifications.

Product Features and Performance

High-Speed CMOS Logic

8-Bit Shift Register with 3-State Output Registers

Serial-to-Parallel Data Conversion

74HCT Series

Operating Voltage Range 4.5V to 5.5V

Product Advantages

Low Power Consumption

High Noise Immunity

Non-Inverting Outputs

High Speed: tPD = 12 ns (Typ) at VCC = 5V

Key Technical Parameters

Logic Type: Shift Register

Output Type: Tri-State

Number of Elements: 1

Number of Bits per Element: 8

Function: Serial to Parallel

Voltage Supply: 4.5V to 5.5V

Operating Temperature: -55°C to +125°C

Mounting Type: Surface Mount

Package/Case: 16-SOIC

Quality and Safety Features

ESD Protection

Latch-Up Performance Exceeds 100 mA per JESD 78, Class II

Meets or Exceeds JEDEC Standard JESD 17 Specifications

Compatibility

Pin Compatible with Other Standard Logic Families

Compatible with TTL Outputs

Application Areas

Communication Systems

Data Management

Consumer Electronics

Automotive Industry

Product Lifecycle

Active Product Status

Not Nearing Discontinuation

Continuously Manufactured and Supplied

Several Key Reasons to Choose This Product

Trusted Manufacturer with Proven Reliability

Wide Operating Temperature Range Suitable for Harsh Environments

Versatility for Diverse Applications

Readily Available and Not at Risk of Near-term Discontinuation

High-Speed Performance Suitable for Fast Data Processing Operations

Tape & Reel Packaging for Automated Manufacturing Processes
