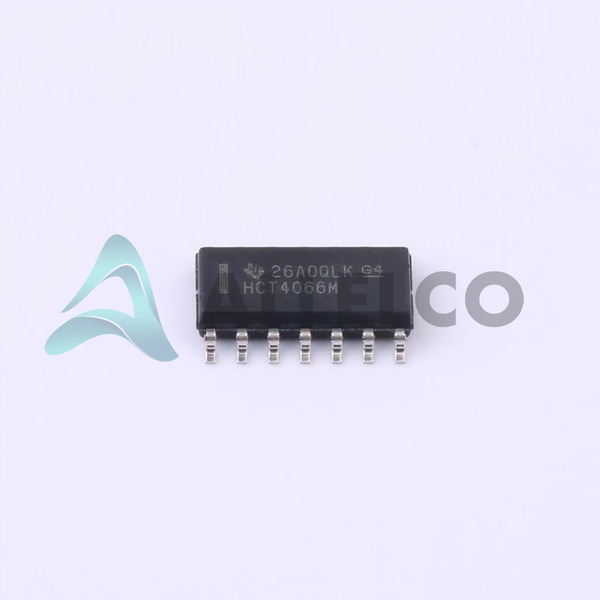

CD74HCT4066M96 - Texas Instruments

Manufacturer Part Number

CD74HCT4066M96

Manufacturer

Texas Instruments

Introduction

Quad Single-Pole Single-Throw (SPST) Analog Switches

Part of the 74HCT Analog Switch family

Product Features and Performance

4 independent SPST switches

High-speed operation with 200MHz -3dB bandwidth

Low on-resistance of 70 ohm max

Low channel-to-channel matching of 500 mOhm

Low leakage current of 100 nA max

Low crosstalk of -72 dB @ 1 MHz

Operates on a single 4.5V to 5.5V power supply

Wide operating temperature range of -55°C to 125°C

Product Advantages

Compact 14-SOIC surface mount package

Excellent analog switching performance

Wide operating voltage and temperature range

Ease of integration into designs

Key Technical Parameters

Package: 14-SOIC

Mounting Type: Surface Mount

Number of Circuits: 4

-3dB Bandwidth: 200 MHz

Leakage Current: 100 nA max

On-State Resistance: 70 ohm max

Multiplexer/Demultiplexer Circuit: 1:01

Channel-to-Channel Matching: 500 mOhm

Switch Circuit: SPST NO

Supply Voltage: 4.5V to 5.5V

Channel Capacitance: 5 pF

Crosstalk: -72 dB @ 1 MHz

Quality and Safety Features

RoHS3 compliant

Manufactured by the industry-leading Texas Instruments

Compatibility

Compatible with various electronic systems and circuits that require high-performance, low-power analog switching

Application Areas

Suitable for a wide range of applications, including telecommunications, industrial control, and consumer electronics

Product Lifecycle

This product is an active and widely-used part in the Texas Instruments 74HCT Analog Switch family

Replacement and upgrade options are readily available

Several Key Reasons to Choose This Product

Excellent analog switching performance with high speed, low on-resistance, and low leakage

Wide operating voltage and temperature range for versatile applications

Compact and easy-to-integrate surface mount package

Manufactured by the industry-leading Texas Instruments with high quality and reliability
