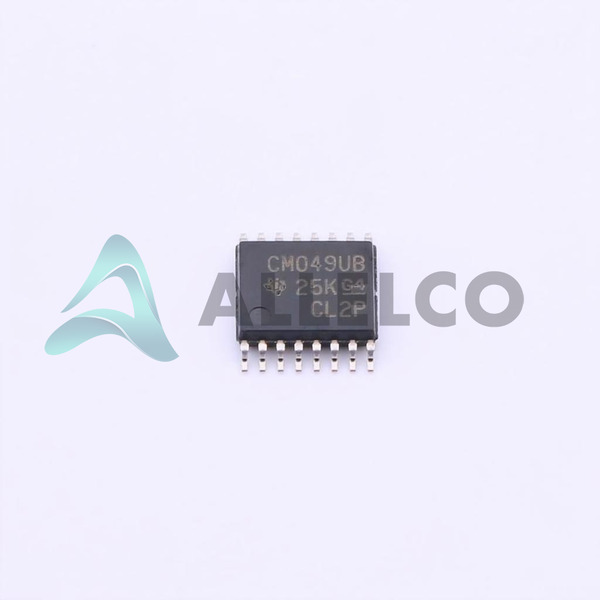

CD4049UBPWR - Texas Instruments

Manufacturer Part Number

CD4049UBPWR

Manufacturer

Texas Instruments

Introduction

The CD4049UBPWR is a CMOS Hex Inverting Buffer/Converter from the 4000B series.

Product Features and Performance

Hex (six) inverter circuits in one package

Wide supply voltage range of 3V to 18V

Inherently low quiescent current draw of 4 μA max

Capable of driving 4.3 mA high and 24 mA low output currents

Input logic levels are compatible with a wide range of devices

Product Advantages

Versatile logic inverter with high noise immunity

It can be used for logic level conversion due to varied input threshold levels

The low power consumption makes it ideal for battery-powered devices

Key Technical Parameters

Logic Type: Inverter

Number of Circuits: 6

Voltage Supply: 3V ~ 18V

Current Quiescent (Max): 4 µA

Current Output High, Low: 4.3mA, 24mA

Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF

Quality and Safety Features

Qualified for extended temperature range of -55°C to 125°C, ensuring reliability in harsh conditions

Compatibility

Surface Mount device compatible with standard 16-TSSOP footprint

Interfacing supported with various other logic families due to its broad voltage range

Application Areas

Used commonly in automotive, industrial, and telecommunication systems

Suited for logic level shifting, memory address decoding, and signal inversion applications

Product Lifecycle

Status: Active

No immediate discontinuation, and replacements or upgrades are currently available

Several Key Reasons to Choose This Product

Highly reliable and robust performance offered by Texas Instruments

Suitability for complex operating environments due to extended temperature range and low quiescent current

The convenience of integrating six inverters in one compact package

Wide voltage range provides flexibility in various applications

Fast propagation delay supports applications requiring quick response times
