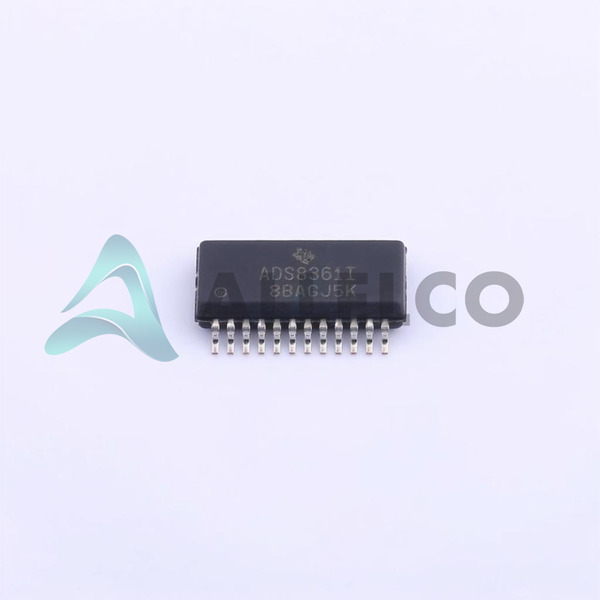

ADS8361IDBQR - Texas Instruments

Manufacturer Part Number

ADS8361IDBQR

Manufacturer

Texas Instruments

Introduction

The ADS8361IDBQR is a high-performance, 16-bit Analog to Digital Converter (ADC) designed for enhanced data acquisition in systems requiring high dynamic range and speed.

Product Features and Performance

16-bit resolution

Dual ADC with simultaneous sampling at 500ksps

4 differential input channels

Serial Peripheral Interface (SPI) data output

Configurable as MUX-S/H-MUX-ADC

Supports both external and internal reference voltage

Operates with 5V analog supply and 2.7V to 3.6V digital supply

Capable of operating in temperatures from -40°C to 125°C

SAR (Successive Approximation Register) architecture

Offered in a 24-SSOP package for surface mount applications

Product Advantages

High resolution and fast sampling rate improve measurement accuracy and speed

Simultaneous sampling enables accurate representation of rapidly changing signals

Flexible reference voltage options accommodate various signal ranges

Wide operating temperature range enhances usability in harsh environments

Compact and efficient design suitable for space-constrained applications

Key Technical Parameters

Number of Bits: 16

Sampling Rate (Per Second): 500k

Number of Inputs: 4, Differential

Data Interface: SPI

Voltage Supply, Analog: 5V

Voltage Supply, Digital: 2.7V ~ 3.6V

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Designed and manufactured by Texas Instruments, a leader in high-quality semiconductor devices

Built to meet strict quality standards ensuring high reliability and performance

Compatibility

SPI interface allows for easy integration with most microcontrollers and digital systems

Flexible power supply requirements compatible with standard logic levels

Application Areas

Industrial control systems

Medical equipment

Data acquisition systems

High-speed signal analysis

Automated test equipment

Product Lifecycle

Currently marked as Active

No indicated discontinuation, ensuring long-term availability for new designs

Several Key Reasons to Choose This Product

High resolution and speed enable precision measurements and quick data processing.

Simultaneous sampling of dual ADCs allows accurate capture of dynamic signals.

Compatibility with both external and internal reference voltages offers design flexibility.

Reliable performance across a broad temperature range suitable for challenging environments.

Manufactured by Texas Instruments, ensuring quality and support for a wide range of applications.
